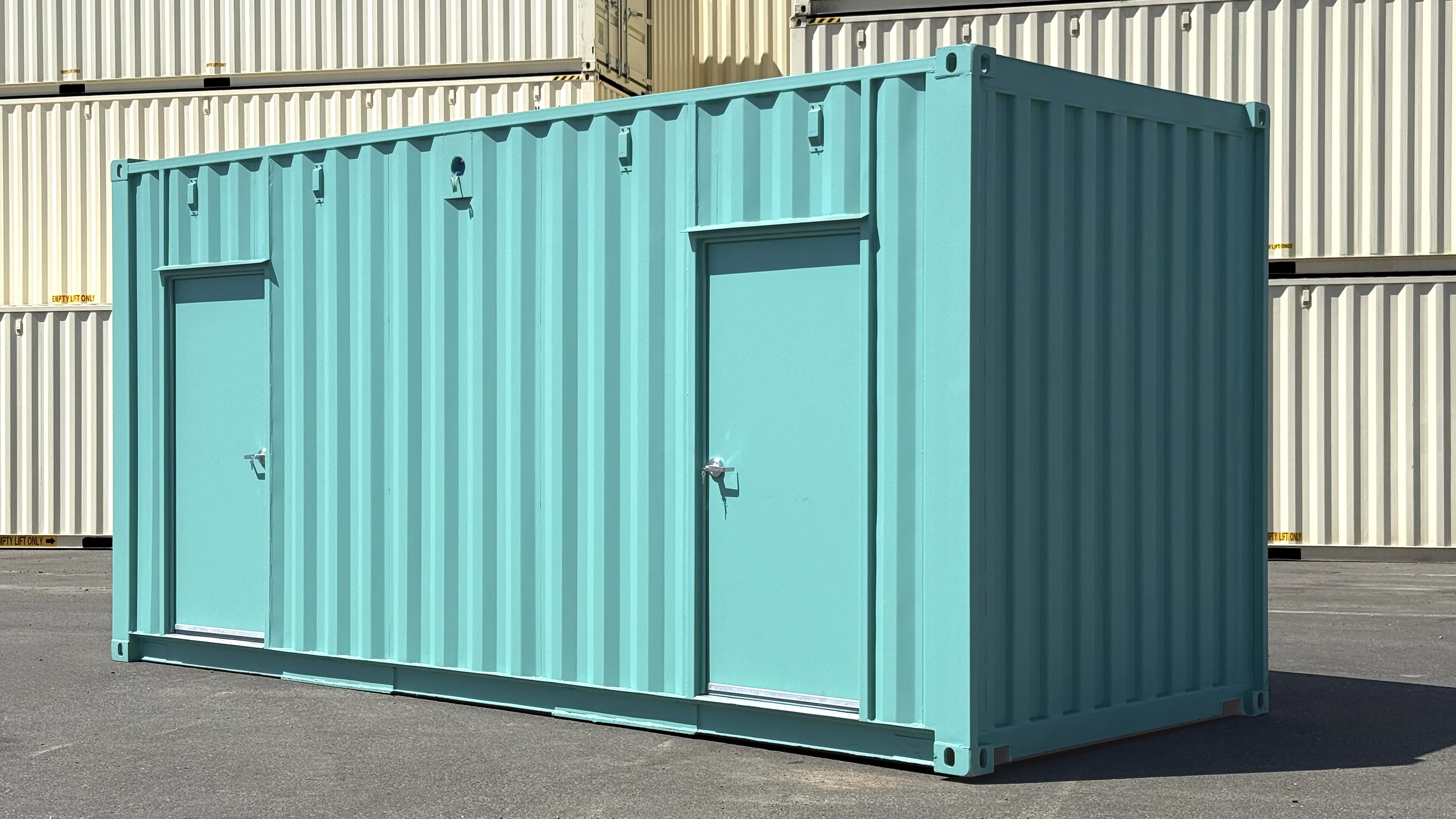

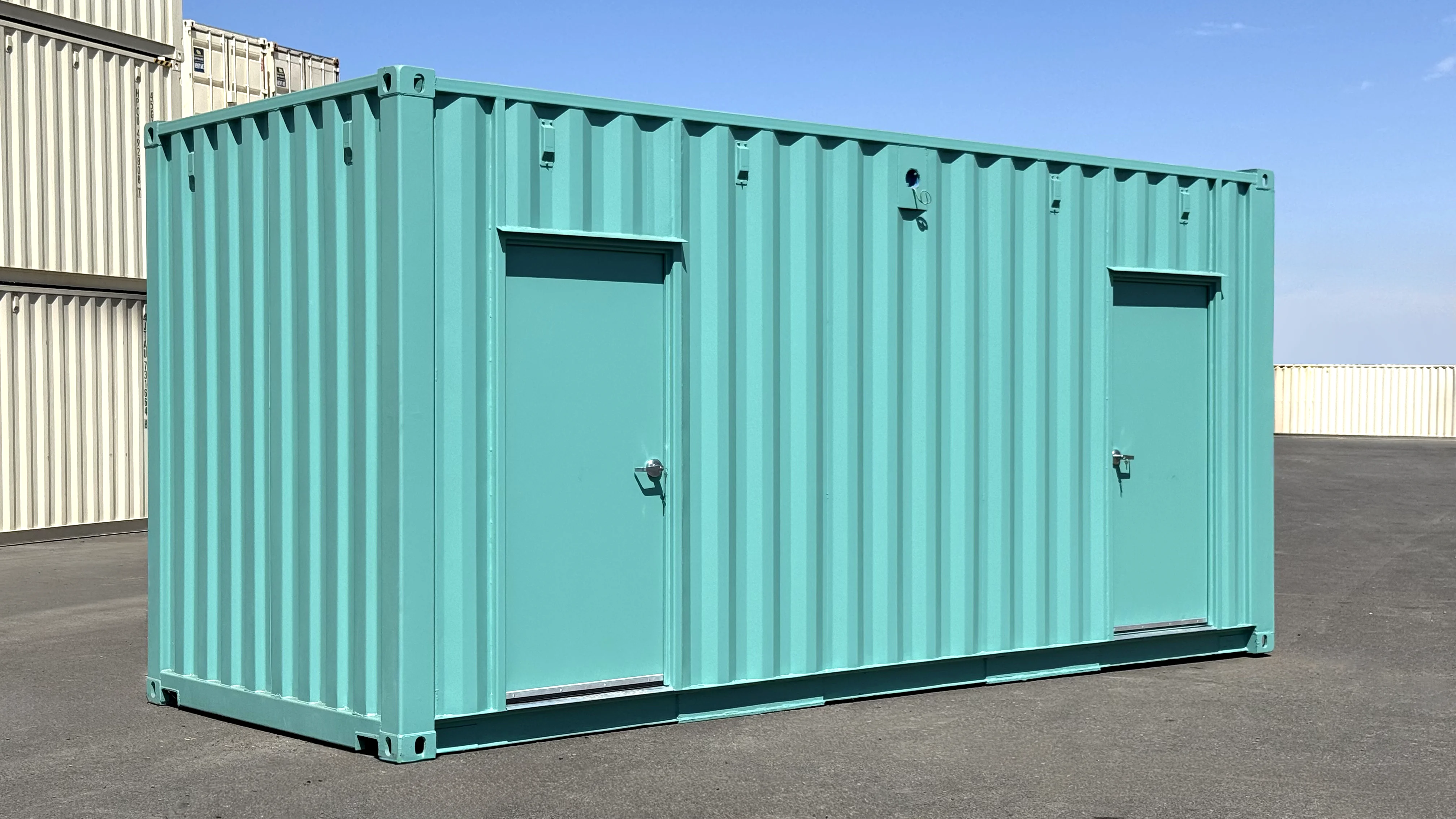

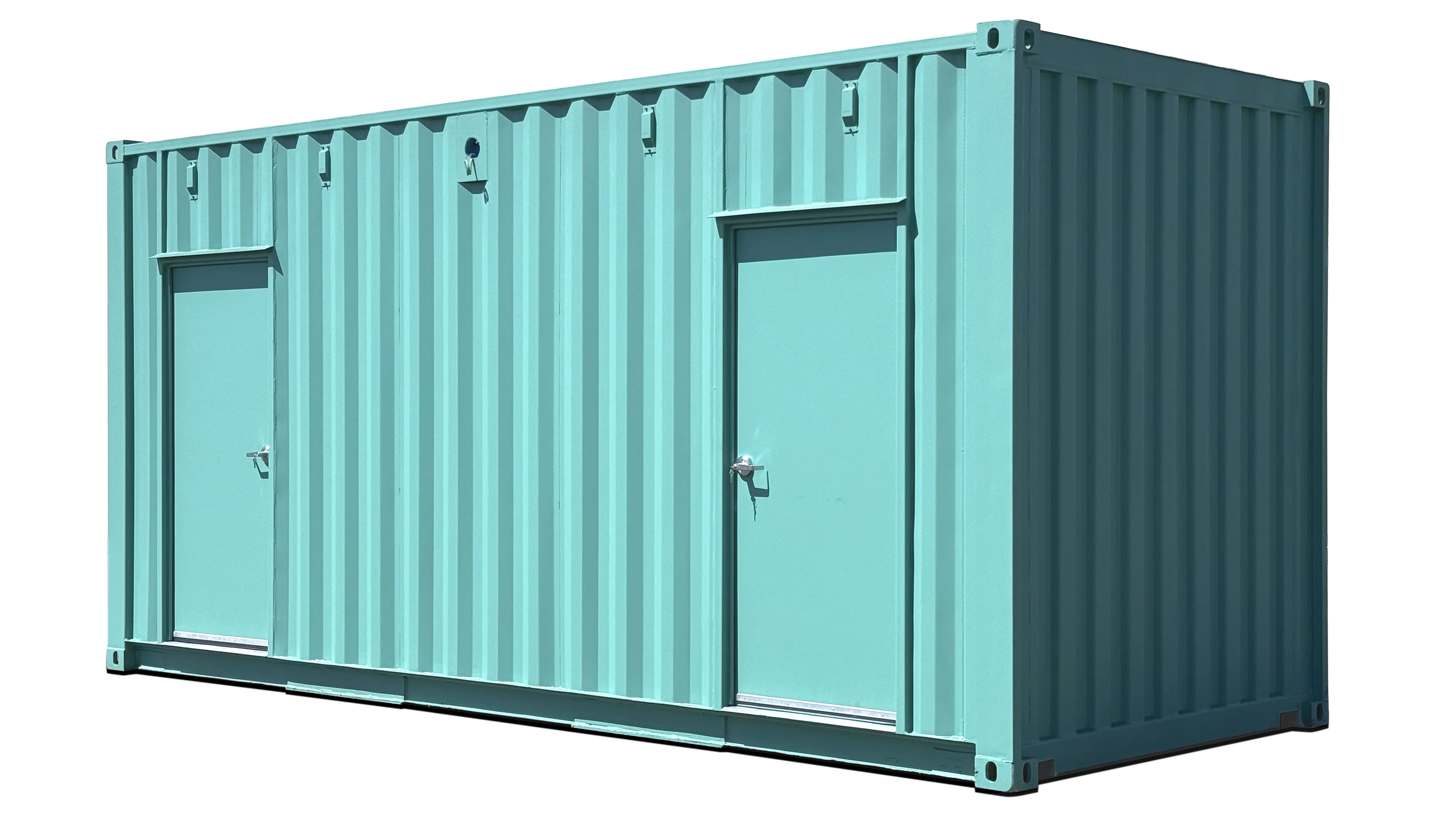

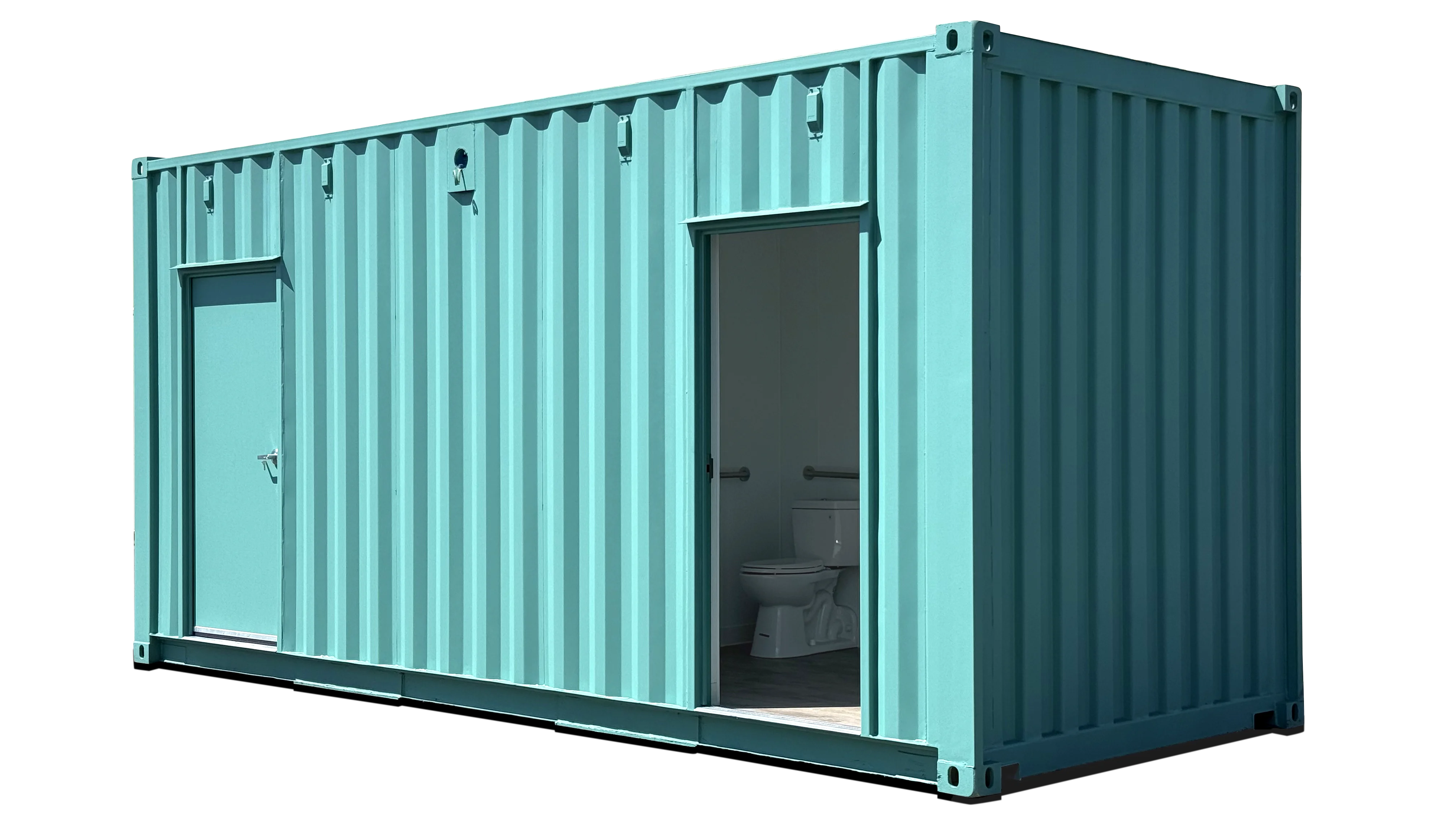

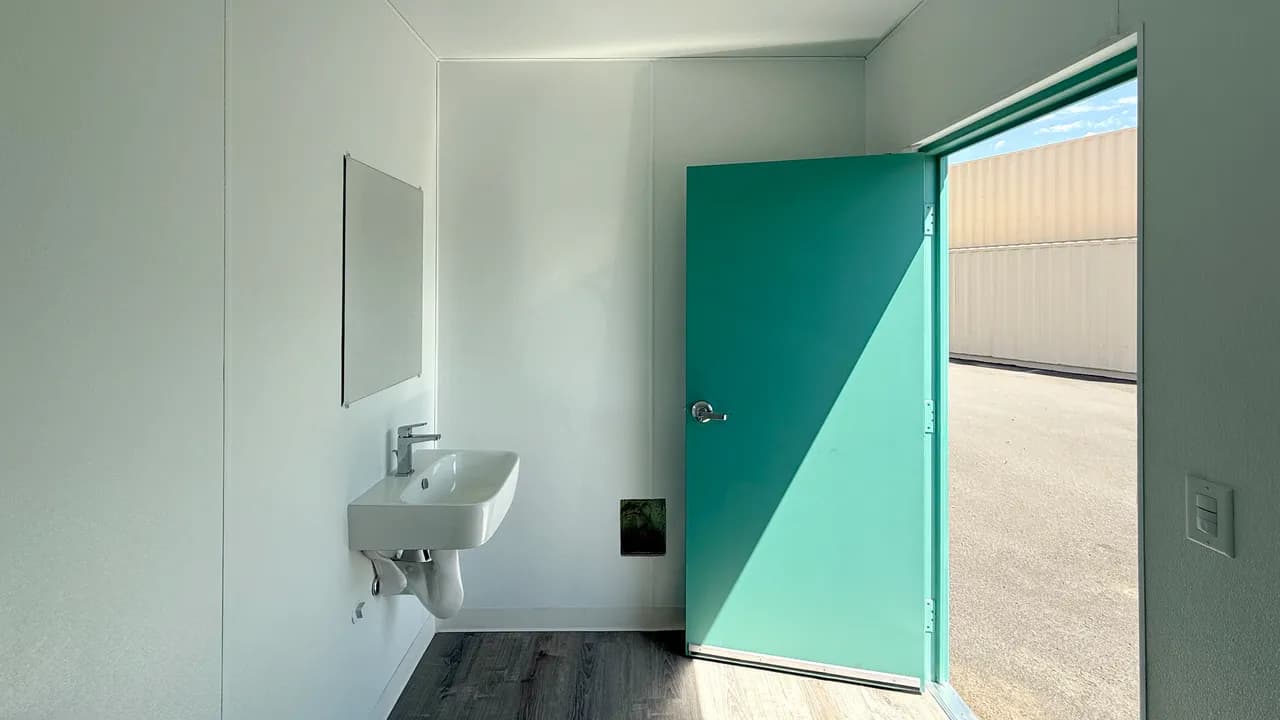

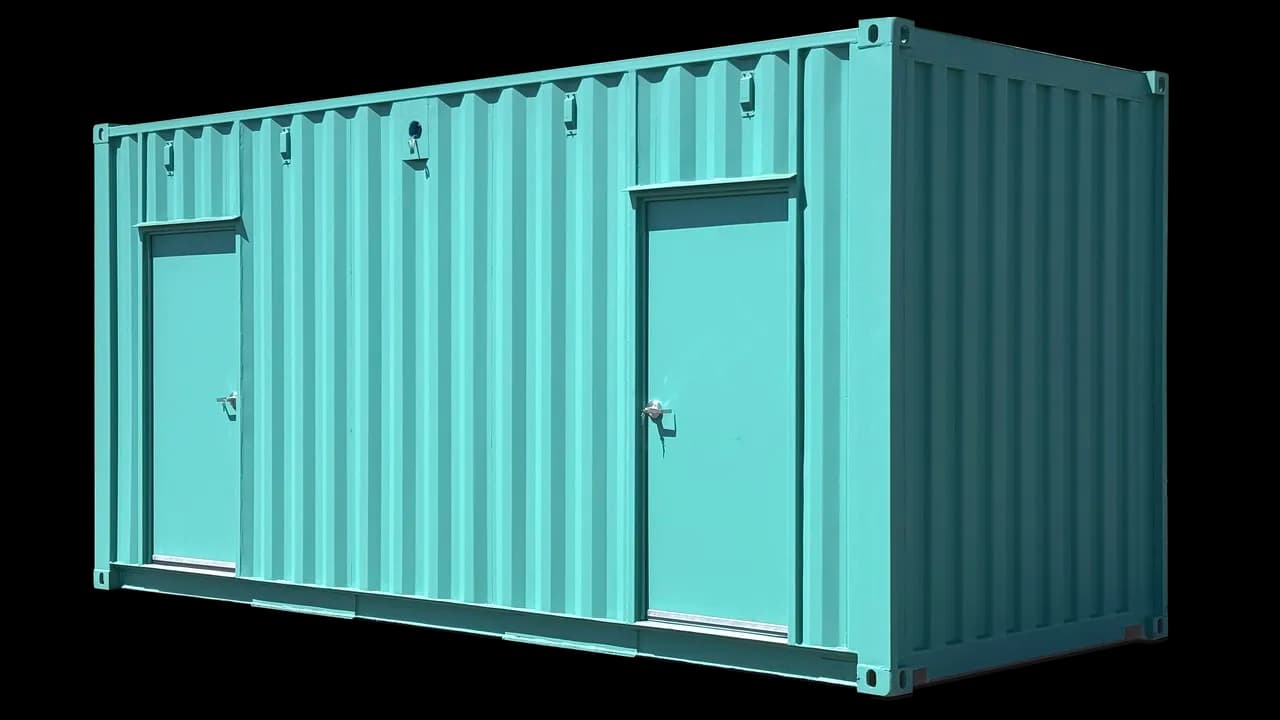

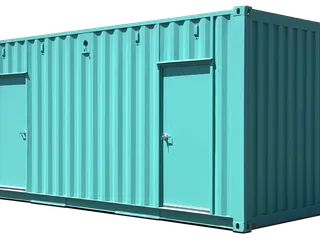

A 20ft high cube new 2x ADA restroom container is a dual-stall, Americans with Disabilities Act-compliant portable restroom built inside a one-trip 20-foot high-cube steel shipping container — two independent accessible restrooms with the extra ceiling height needed for comfortable ADA layouts.
Why high cube for dual ADA? The 9'6" interior gives each compartment the headroom, ventilation space, and 60-inch turning radius required for wheelchair maneuverability without compromising fixture placement — while two separate exterior doors serve independent accessible stalls on one footprint.
Ideal for construction sites, parks, outdoor events, sports facilities, school campuses, and commercial properties requiring paired accessible restrooms with premium interior clearance. Available nationwide with transparent online ordering and fast delivery to your site. Custom exterior paint and branding options help the unit blend into parks, campuses, and commercial property settings.
Steel container construction offers superior durability compared to paired portable restroom units, with a shared partition wall ensuring full privacy between stalls. Optional HVAC provides year-round climate control, and the high cube ceiling height improves ventilation and fixture placement in each ADA-compliant compartment.

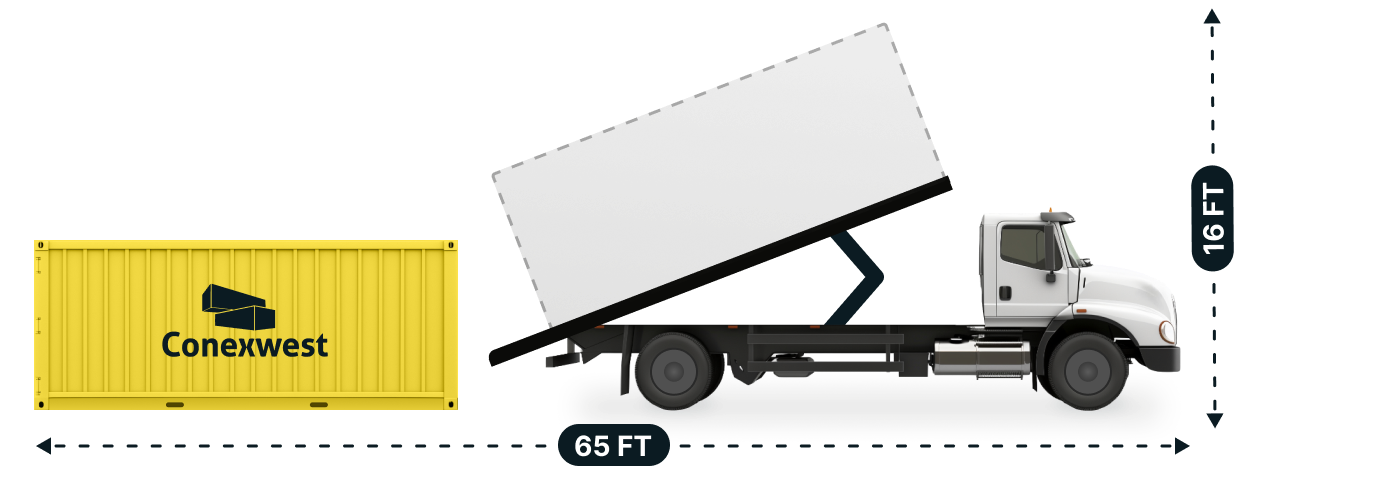

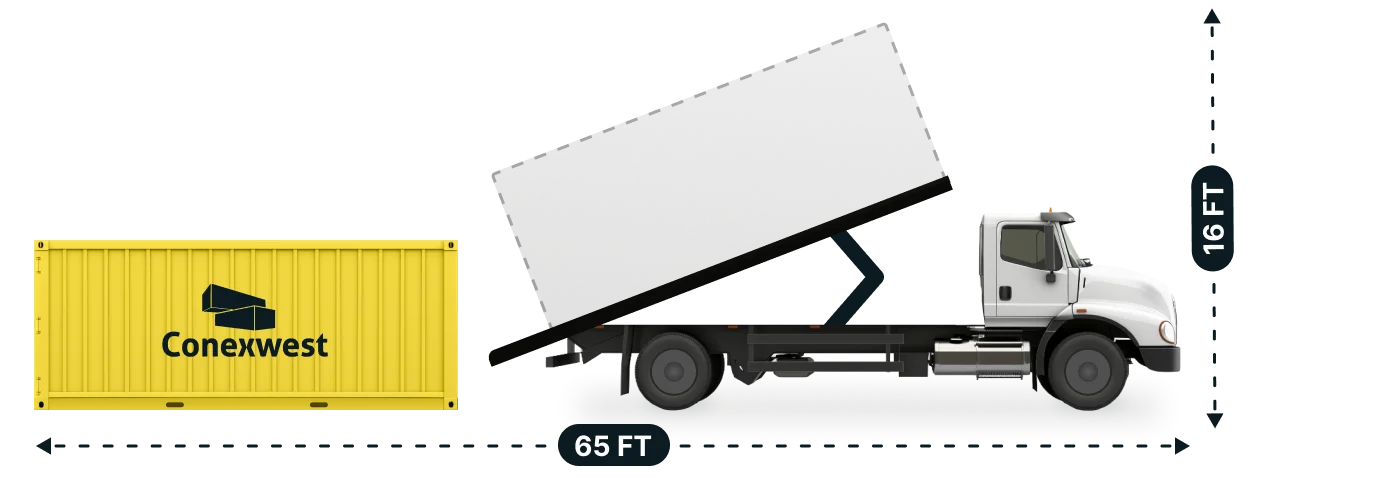

Best when no unloading equipment is available. The driver backs into position, tilts the trailer, and slides the container directly onto the ground.

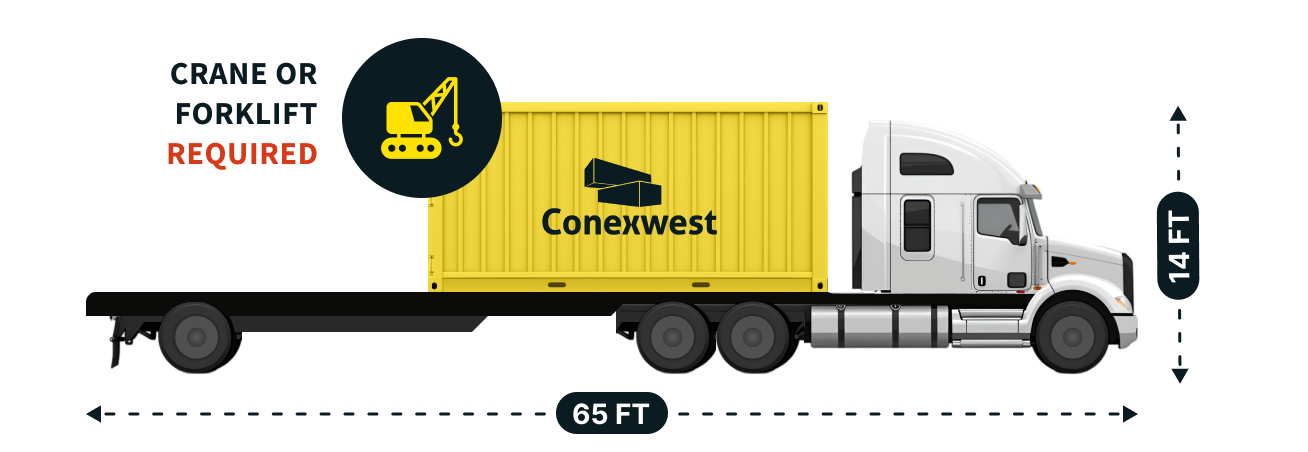

Best when a forklift or crane is available on-site. The container must be lifted off the trailer using a forklift rated for at least 15,000 lb or an appropriate crane. Conexwest can help coordinate additional placement equipment when needed.
Please make sure the delivery site has:
Containers can usually be placed directly on a solid, level surface without a foundation. Let us know in advance if the site is wet, muddy, soft, sloped, or difficult to access.
| Feature | Details |
|---|---|
| Exterior Length | 19 ft 10 1/2 in. (6.058 m) |
| Exterior Width | 8 ft 0 in. (2.438 m) |
| Exterior Height | 9 ft 6 in. (2.896 m) |
| Interior Length | 19 ft 4 in. (5.890 m) |
| Interior Width | 7 ft 8 in. (2.350 m) |
| Interior Height | 8 ft 10 in. (2.693 m) |
| Number of Restrooms | 2 — separate ADA-compliant compartments |
| Restroom Compartment Size | Approx. 9 ft 6 in. x 7 ft 8 in. each (~73 sq ft / 6.8 m² each) |

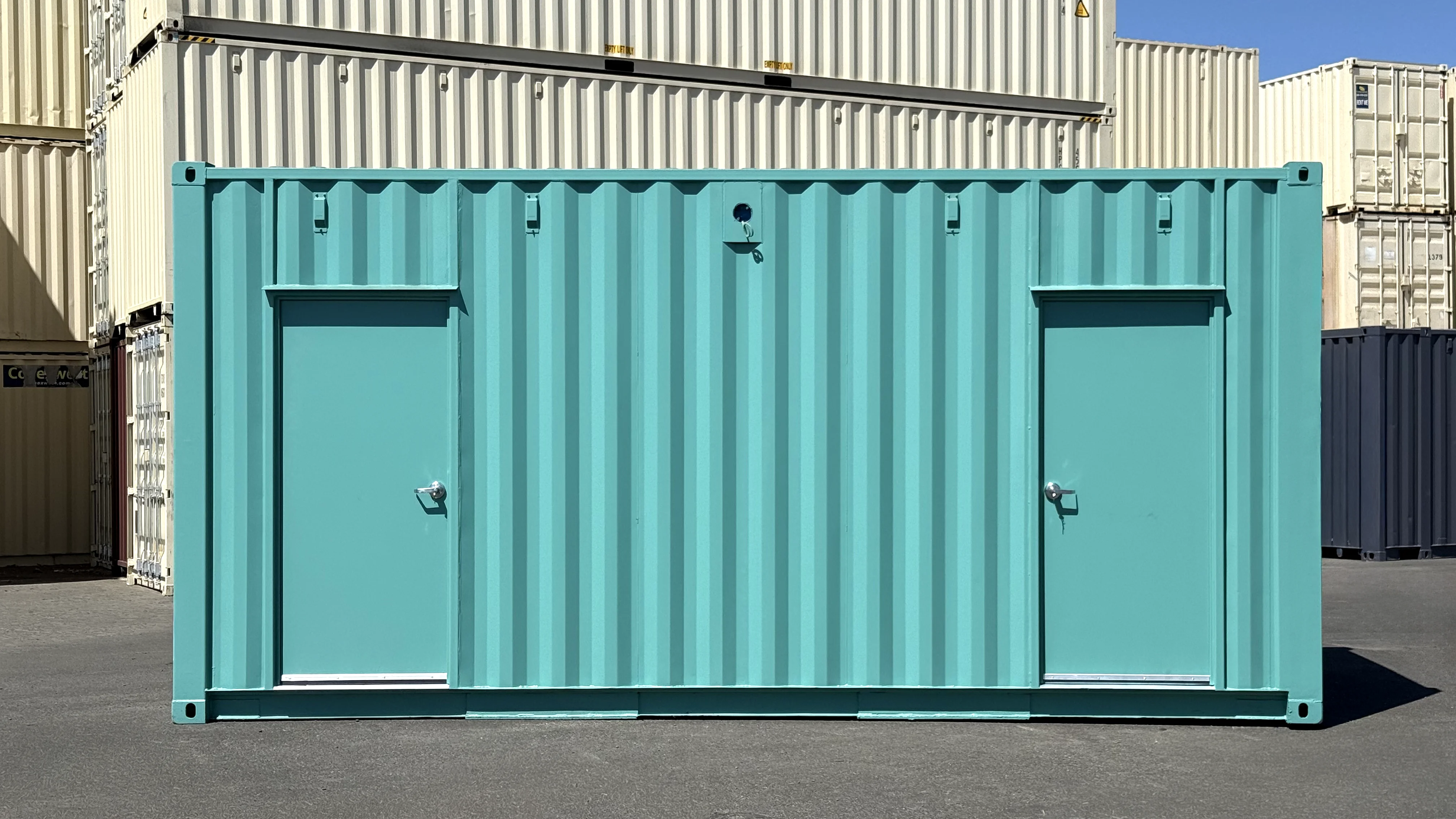

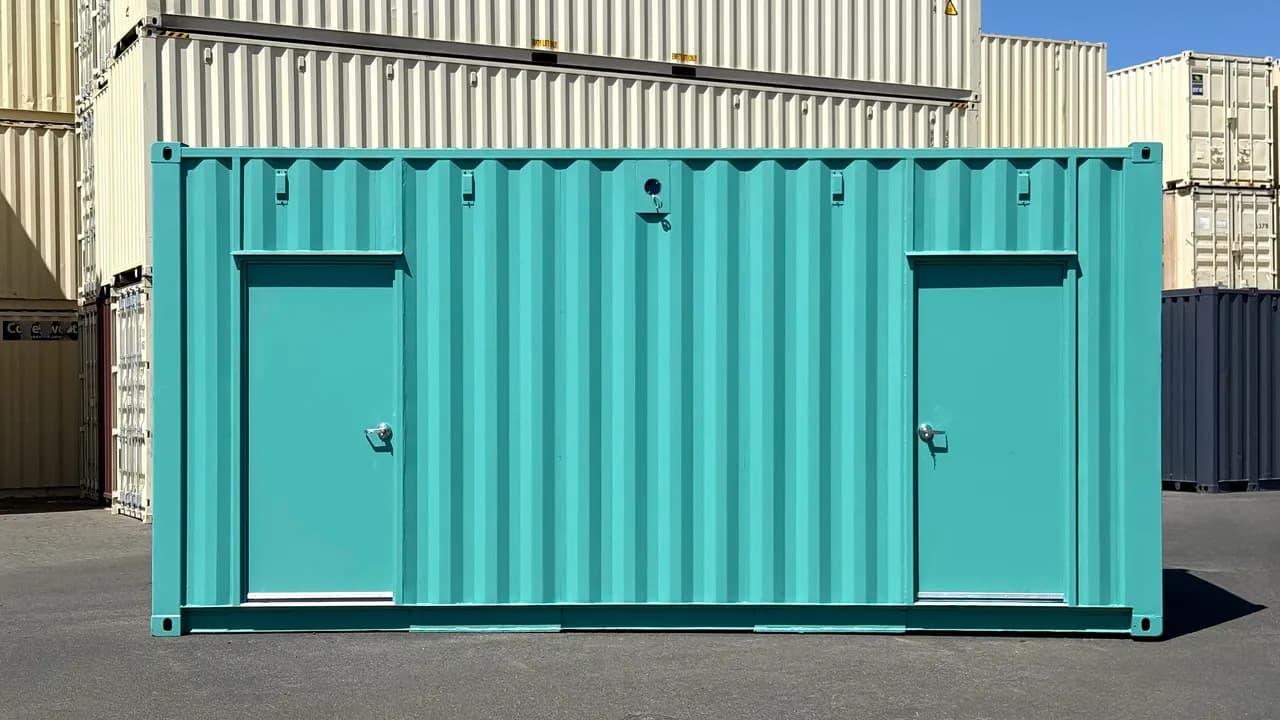

| Entry Doors | 2 exterior doors (one per restroom), each min. 36 in. (0.914 m) clear width |
| Door Opening Height | 8 ft 6 in. (2.585 m) |
| Total Interior Floor Area | Approx. 148 sq ft (13.8 m²) |
| Tare Weight | 5,071 lbs (2,300 kg) |
| Max Gross Weight | 67,197 lbs (30,480 kg) |
| Construction | Corten steel (corrosion-resistant) |
| Flooring | Waterproof non-slip flooring over marine-grade plywood subfloor |
| Walls | Waterproof interior wall panels; insulated partition between restrooms |

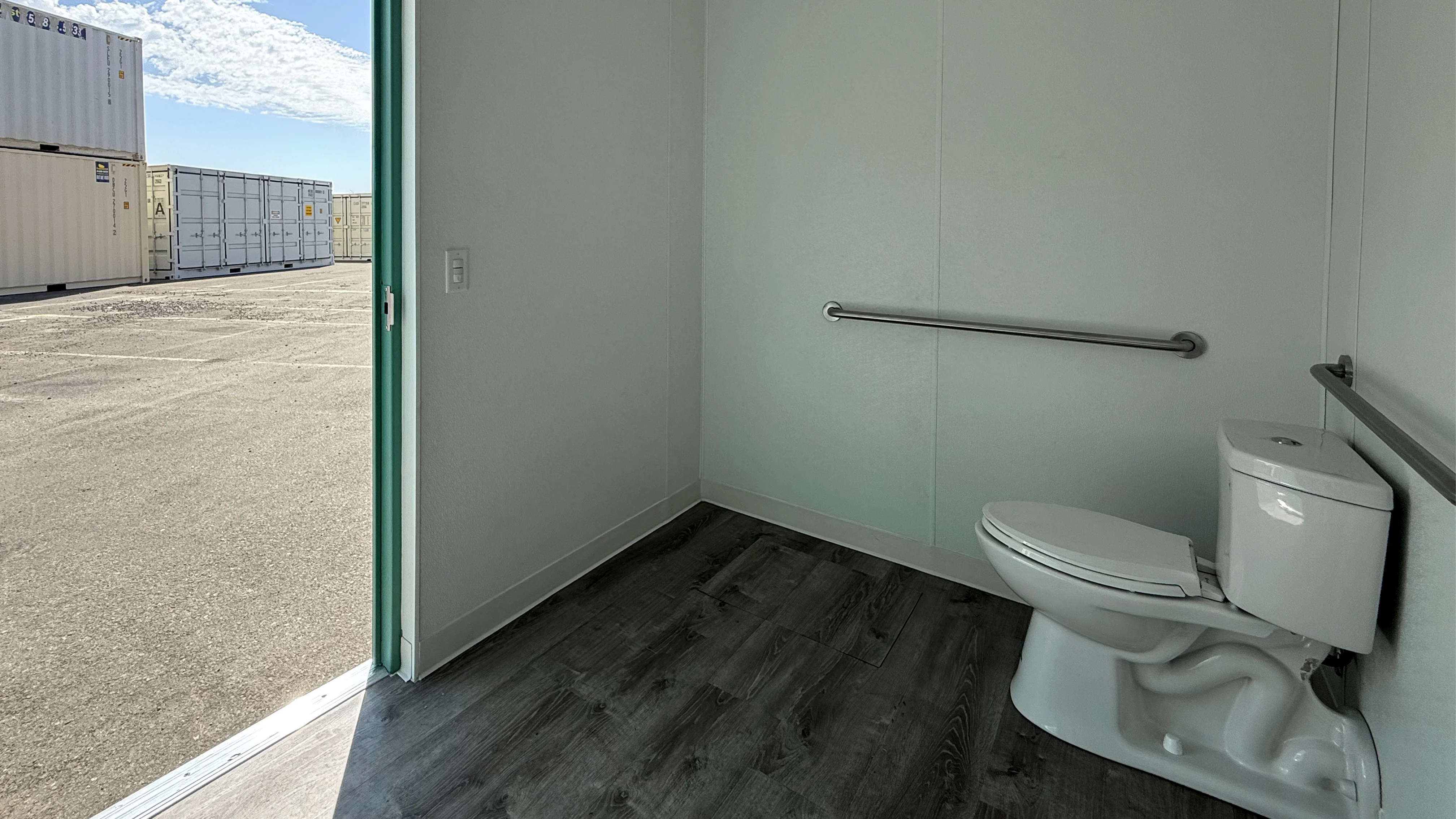

| Toilets (x2) | ADA-compliant height (17–19 in.), flush-type, one per restroom |

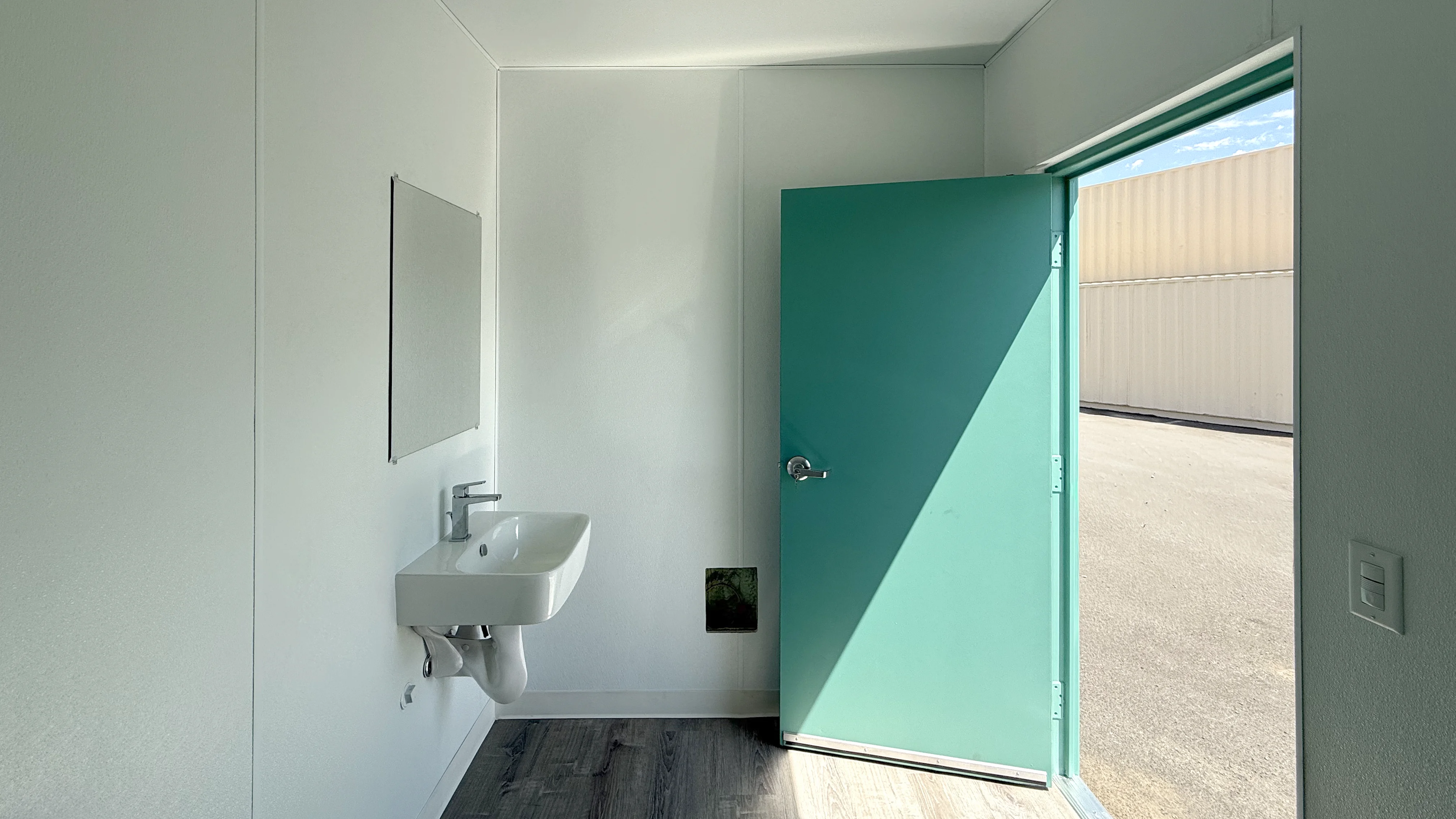

| Sinks (x2) | Wheelchair-accessible, max 34 in. height with knee clearance, one per restroom |
| Grab Bars (x2 sets) | ADA-compliant stainless steel grab bars at each toilet |
| Turning Radius | 60 in. (1,524 mm) wheelchair turning space in each restroom |

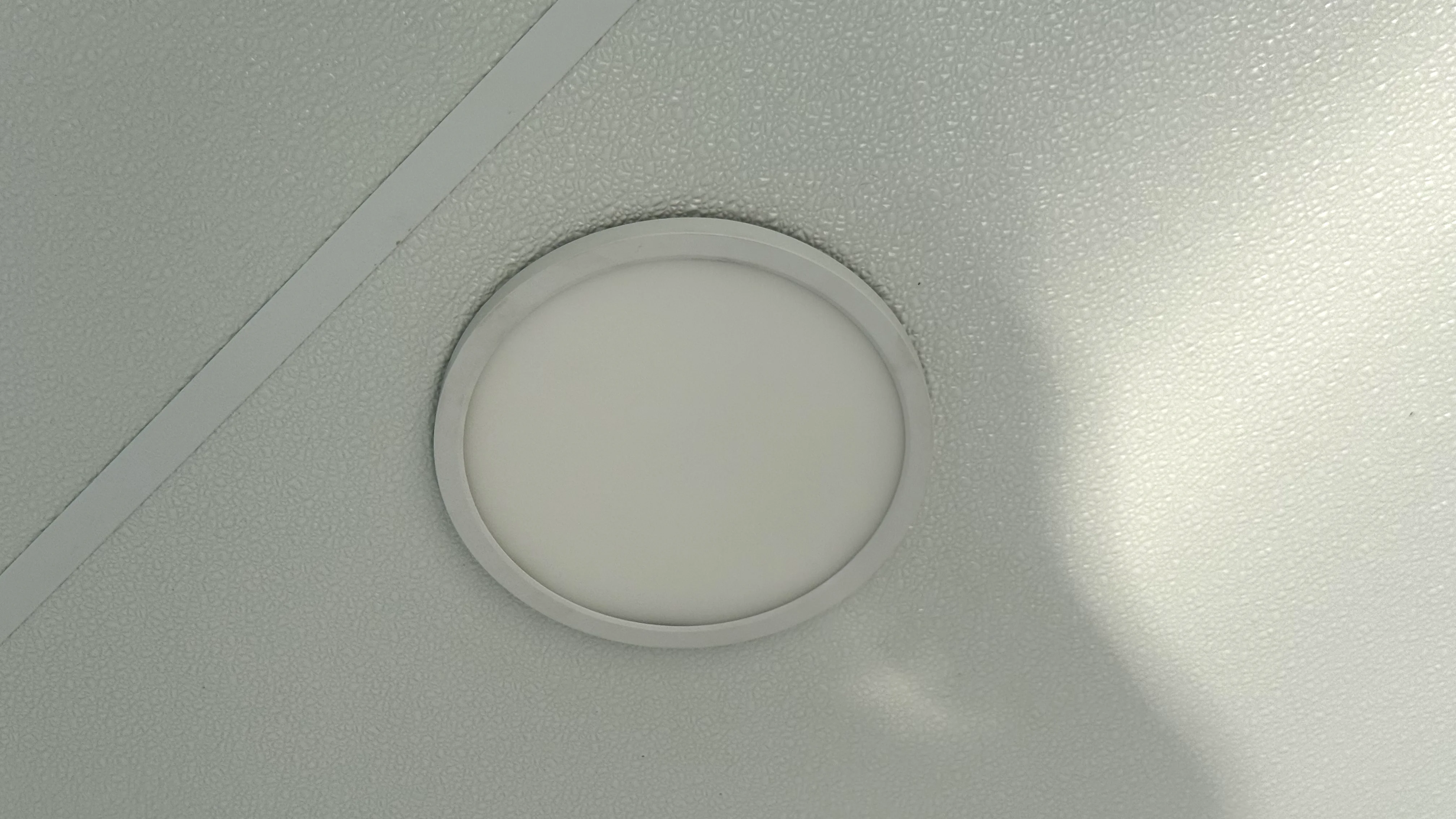

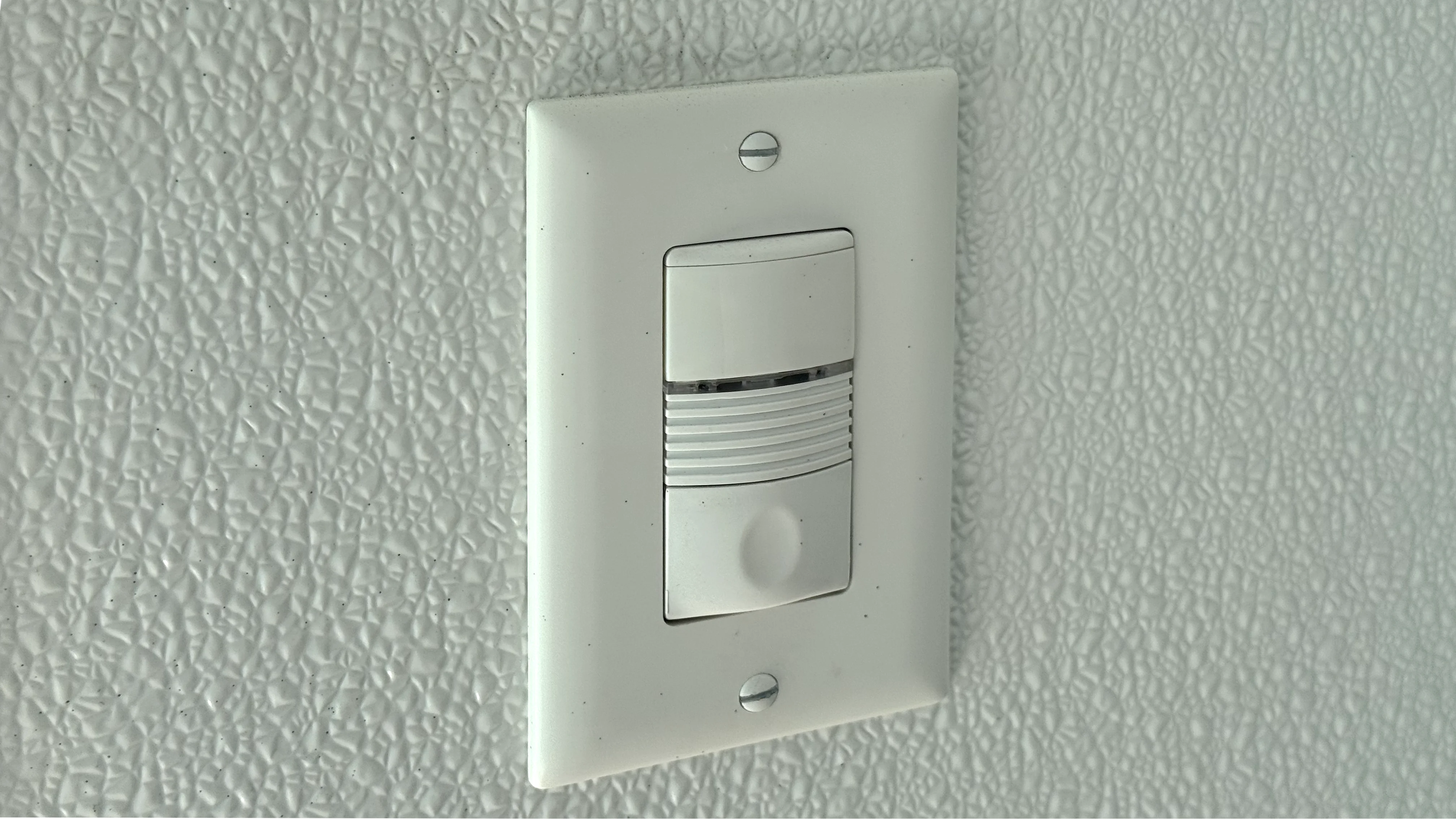

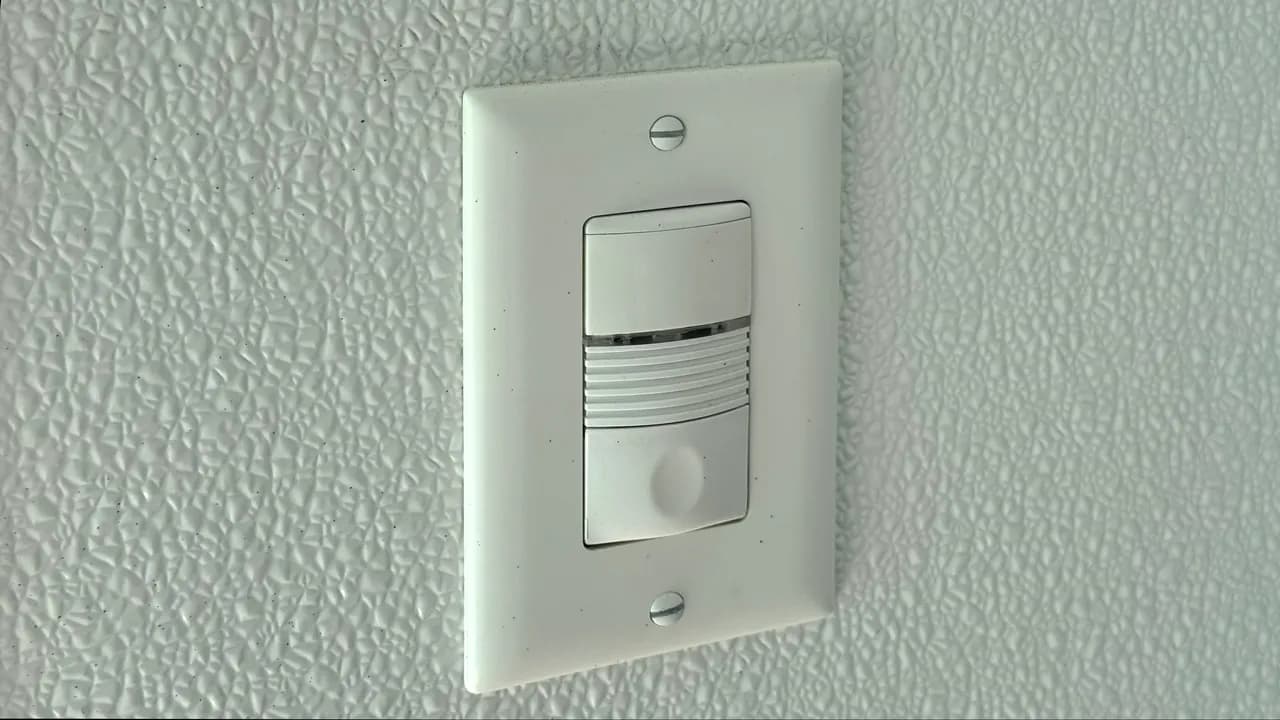

| Lighting | LED interior lighting in each restroom |

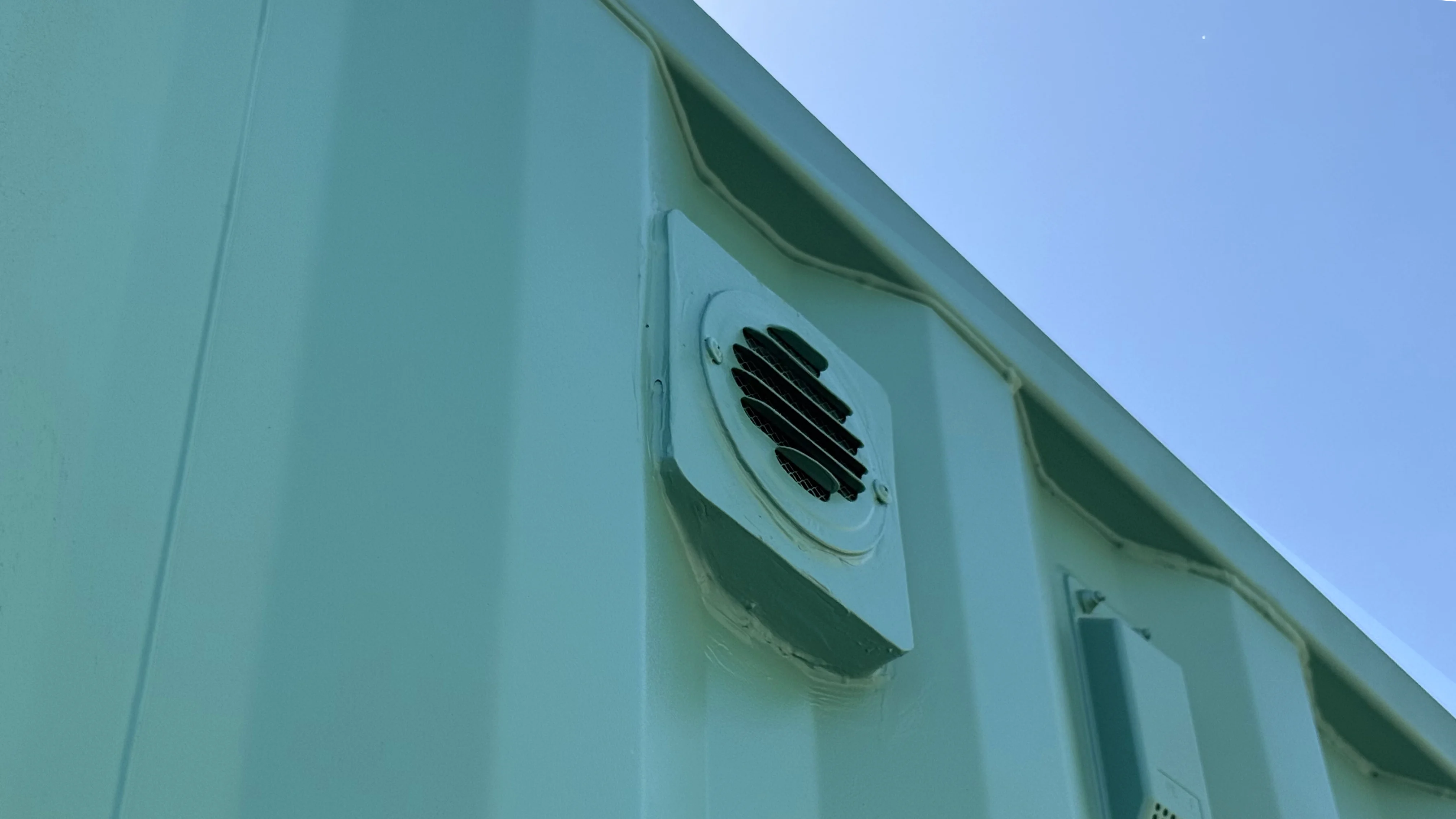

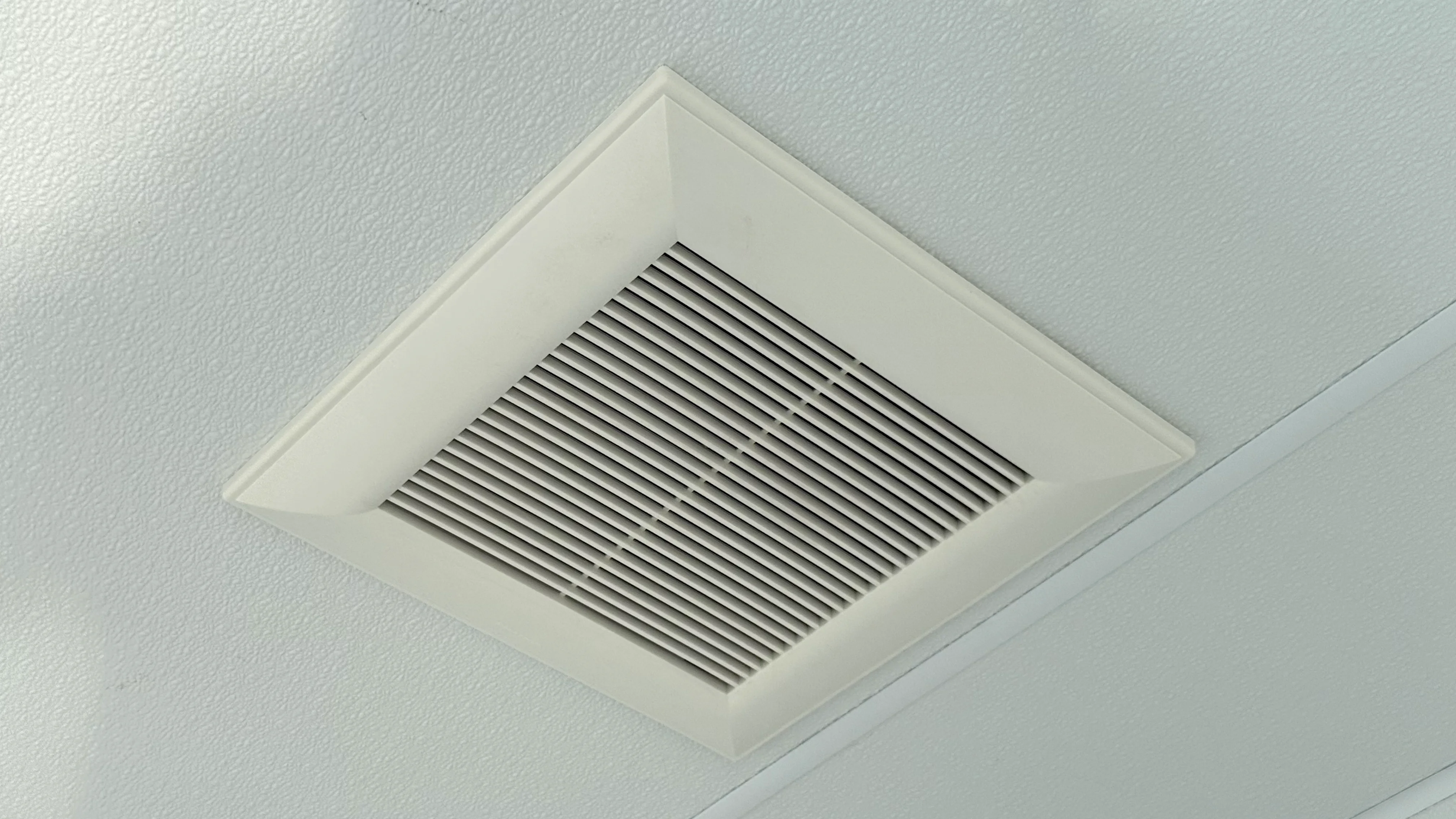

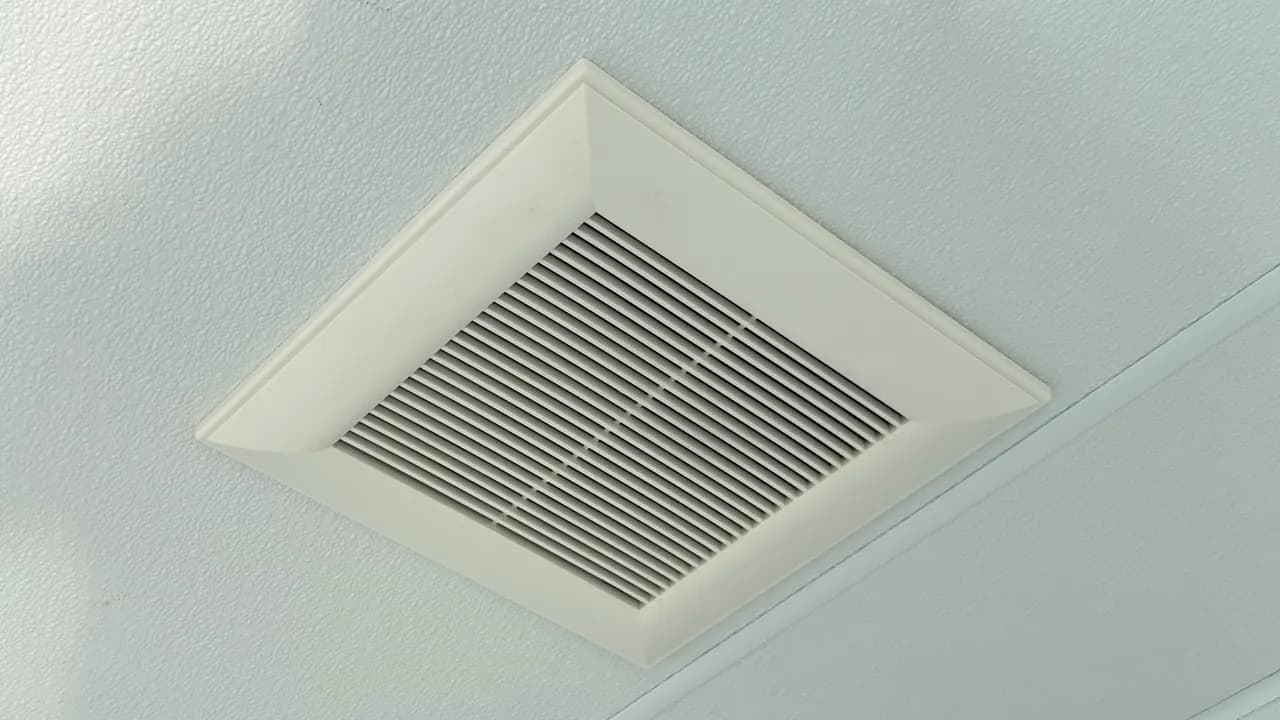

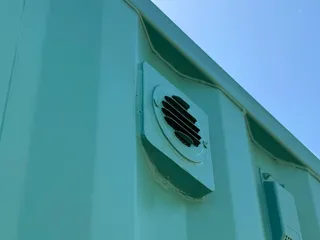

| Ventilation | Exhaust fan and air vents in each restroom |
| HVAC | Optional climate control |

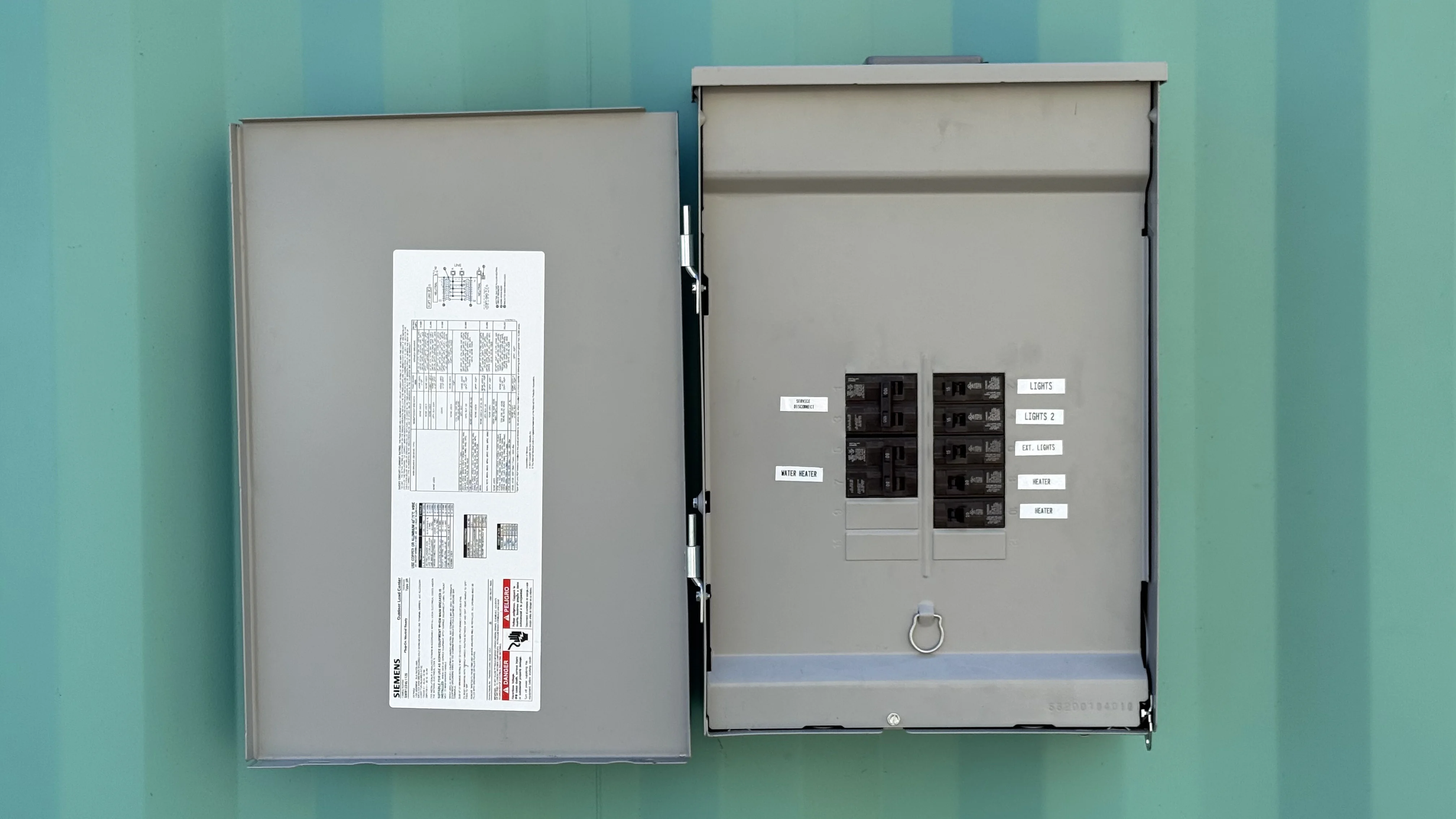

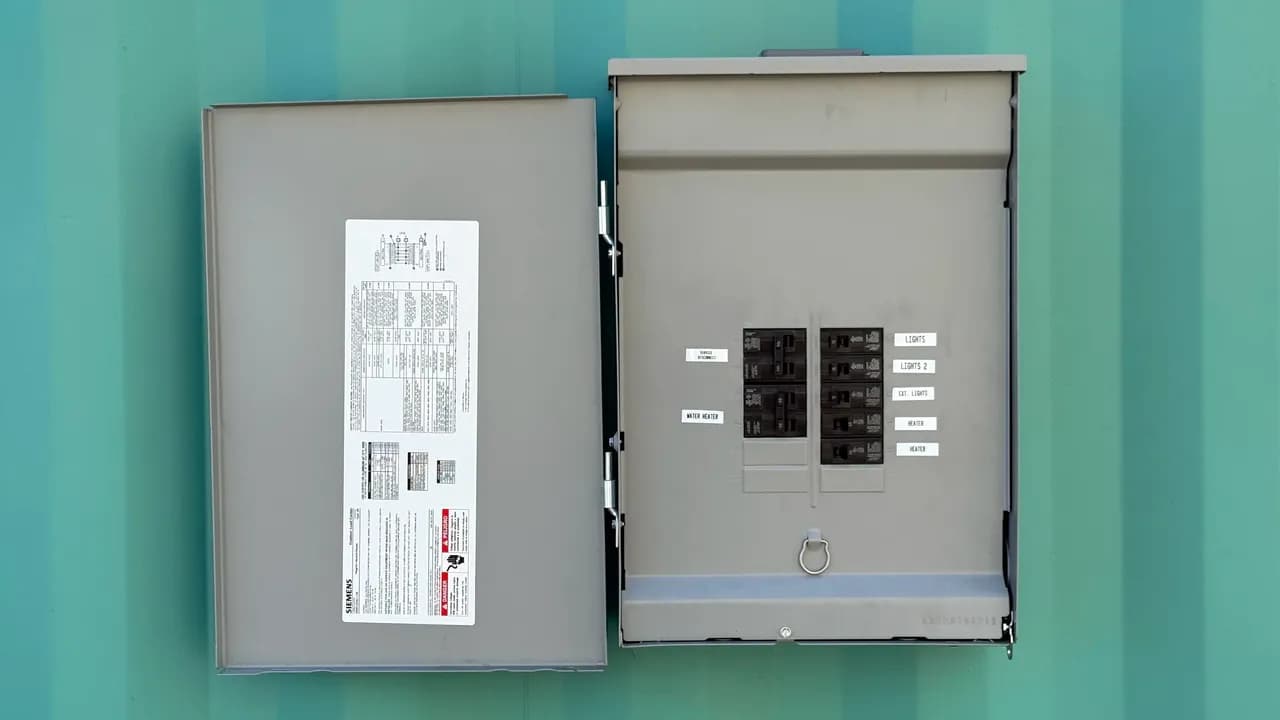

| Electrical | Pre-wired for 110V connection |
| Plumbing | Pre-plumbed; requires water supply and sewer/septic connection |
| ADA Compliant | Yes — both restrooms meet Americans with Disabilities Act standards |
| ISO Certified | No |
| CSC Plate | Yes |
| Forklift Pockets | Yes |
| Lockbox | Included |
| Condition | New (one-trip) |

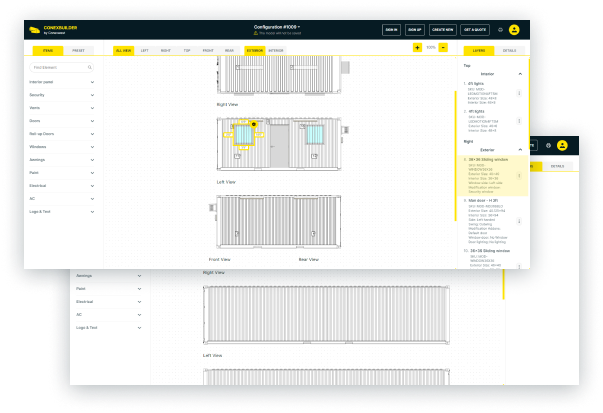

Design your perfect container in minutes with Conexbuilder™, our easy-to-use online customization tool. Choose container size, doors, windows, electrical, insulation, HVAC, and more - all with real-time visuals.
Start building now: Launch Conexbuilder
The 20ft New High Cube ADA Restroom Container comes with a 10-year limited warranty.
This warranty protects against structural defects, corrosion, and manufacturing issues under normal operating conditions.
Coverage Includes
Warranty Exclusions
Routine wear and tear, cosmetic damage (such as scratches, dents, and paint fading), damage caused by misuse, modifications, accidents, or exposure to extreme external conditions are not covered.
Roll-Up Door Warranty
1-year warranty on doors, hardware, and framing
Service and Support
Warranty claims are handled directly through Conexwest.
Optional extended warranty and service plans are available upon request.
