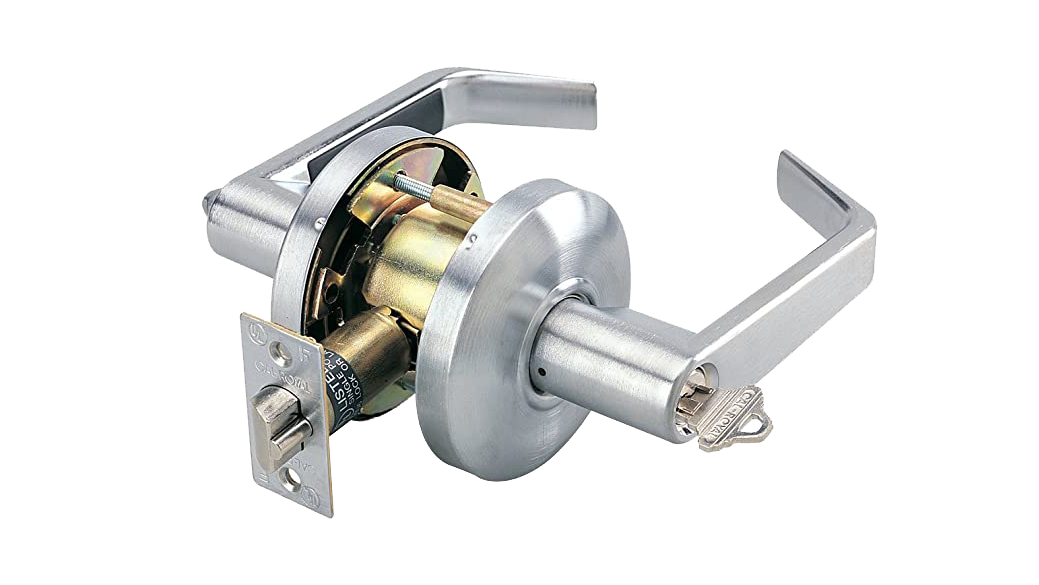

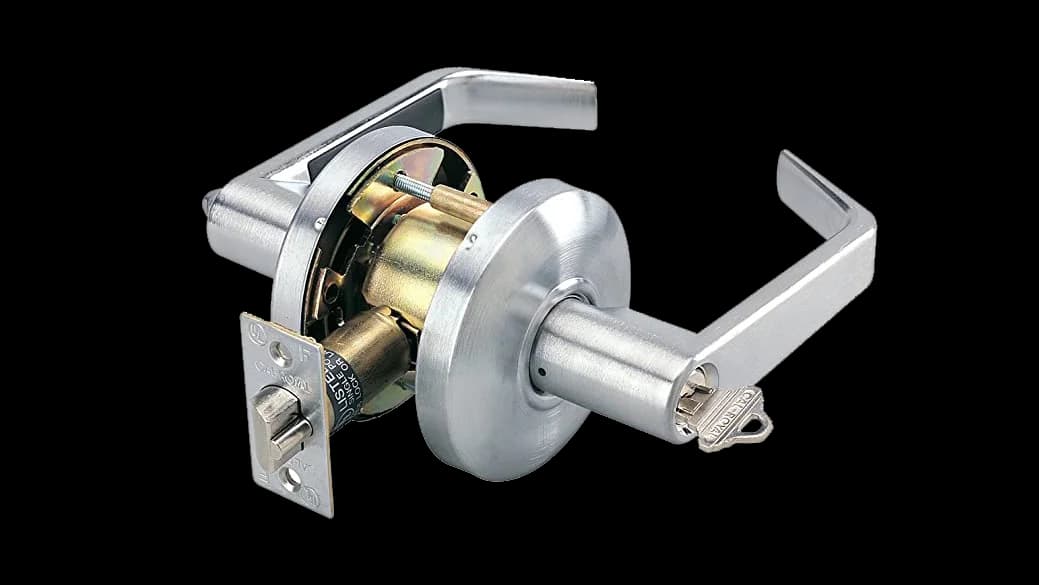

Man Door Accessories 48 in. Single Bore
In Stock
In Stock
FedEx Next-Day Shipping Available
A Man Door Accessories 48 in. Single Bore is a container part or accessory for sale that adds function, security, or comfort to your shipping container build. Compatible with 48 in. container applications (confirm fitment before ordering).
Order the exact spec you need for field repairs, fabrication, or safety compliance.
Buy Man Door Accessories 48 in. Single Bore online now — in stock for delivery in 3-7 days across the US.
ANSI Standards Meets or exceeds of BHMA/ANSI A 156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles.
Specifications:
- Door Range 1-3/8 in. to 1-3/4 in. thickness doors.
- Backset 2-3/4 in. Standard, 2-3/8 in., 3-3/4 in.
- Front 2-1/4 in. x 1-1/8 in., adjustable for flat or beveled doors 1/8 in. in 2 in.
- Strike ASA strike standard. "T" and full lip strike available on request.
- Latchbolt 1/2 in. Throw solid brass, reversible for RH or LH applications. UL listed.
- Latch and Stick Screws 8-32 X 1 in. FPH dual purpose.
- ANSI Standards Meets or exceeds of BHMA/ANSI A 156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles.
- Exposed Trim Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
- Keying 6-pin "C" keyway cylinder, 2 keys per lock.
- Cylinders & Keyways 6 pin solid brass "C" keyway standard
- SL00 US26D
Door Shoe is applied to the underside of the door creating a barrier against dust, drafts, light, smoke, and fire without compromising the aesthetics of the door. It is also used to provide protection for the bottom of the door.
Specifications:
- Width -1 1/4 in. (31.8mm)
- Profile Height -1 5/16 in. (33.3mm)
- Total Height with Insert - Approx. 1 7/8 in. (47.6mm)
- DSR-408
Seals the gaps around the top & two sides of a door. It contains (1) Jamb Header piece and (2) Hinge & Strike Jamb pieces of weatherstrip.
Specifications:
- Width: 1/4 in. (6.4mm)
- Profile Height: 7/8 in. (22.2mm)
- Total Height: 1 1/8 in. (28.6mm)
- PG-603
Thresholds help prevent air flow beneath a door and can save you energy costs.
Specification:
- Height:1/ 2 in. (12.7mm)
- Width: 6 in. (152.4mm)
- CCR2726
