Man Door Accessories 36 in. Double Bore
In Stock
In Stock
FedEx Next-Day Shipping Available
A Man Door Accessories 36 in. Double Bore is a container part or accessory for sale that adds function, security, or comfort to your shipping container build. Compatible with 36 in. container applications (confirm fitment before ordering).
Order the exact spec you need for field repairs, fabrication, or safety compliance.
Buy Man Door Accessories 36 in. Double Bore online now — in stock for delivery in 3-7 days across the US.

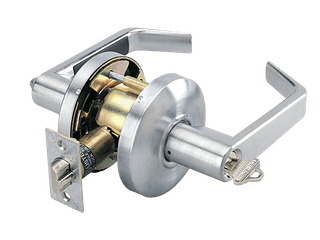

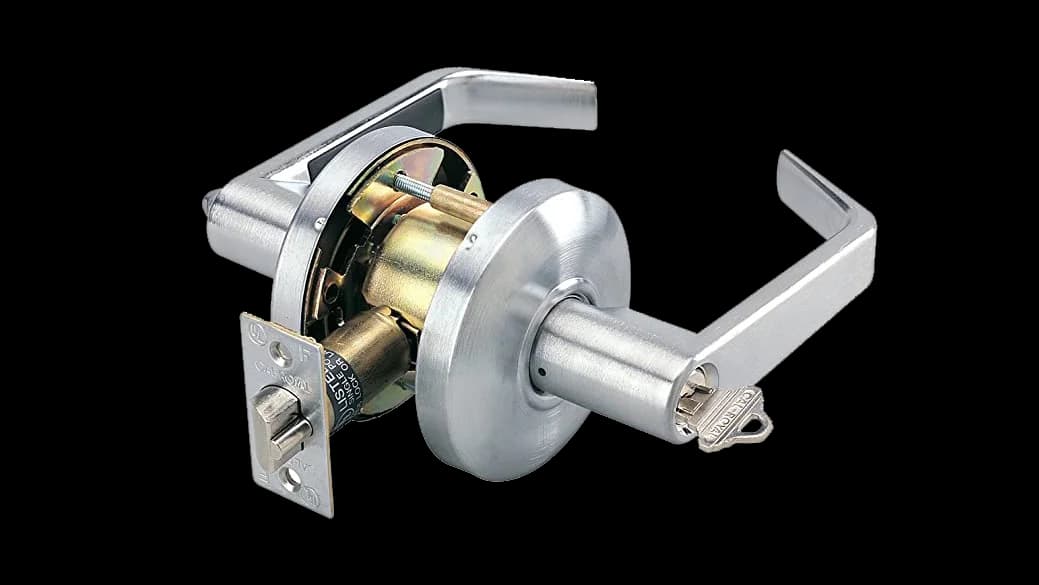

ANSI Standards Meets or exceeds of BHMA/ANSI A 156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles.
Specifications:
- Door Range 1-3/8 in. to 1-3/4 in. thickness doors
- Backset 2-3/4 in. Standard, 2-3/8 in., 3-3/4 in.
- Front 2-1/4 in. x 1-1/8 in., adjustable for flat or beveled doors 1/8 in. in 2 in.
- Strike ASA strike standard. "T" and full lip strike available on request
- Latchbolt 1/2 in. Throw solid brass, reversible for RH or LH applications. UL listed.
- Latch and Stick Screws 8-32 X 1 in. FPH dual purpose
- ANSI Standards Meets or exceeds of BHMA/ANSI A 156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles
- Exposed Trim Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish
- Keying 6-pin "C" keyway cylinder, 2 keys per lock
- SL00 US26D

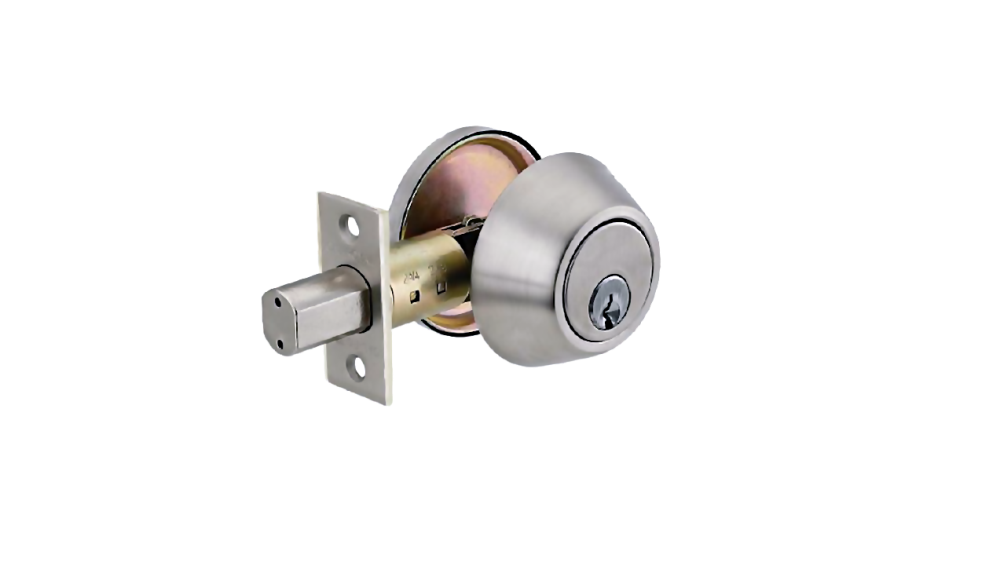

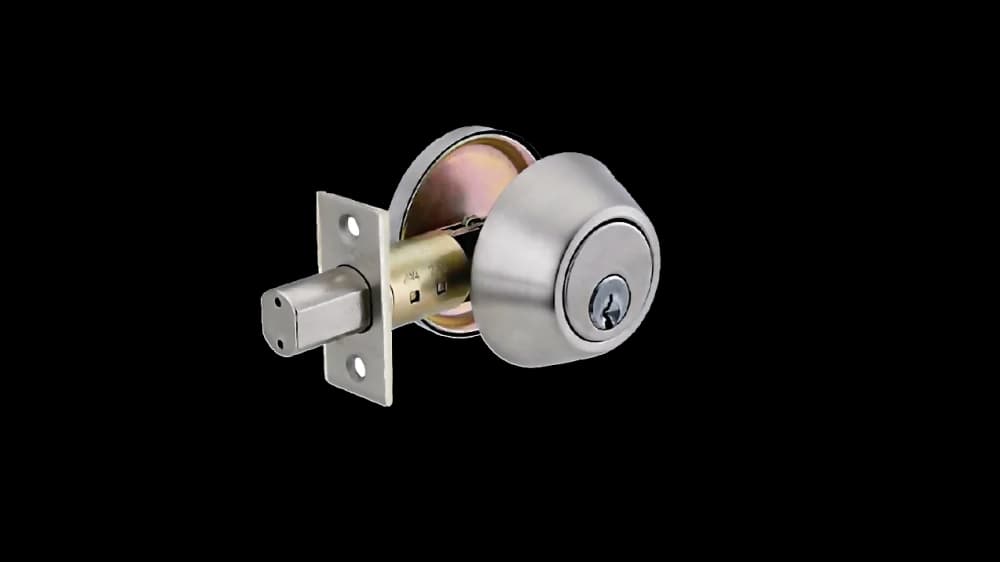

Bore diameter - 1 in. for latch, 1 1/2 in. or 2 1/8 in. for lock housing.
Specifications:
- Made from wrought Brass or Stainless Steel.
- Adjustable 1 3/8 in. (35mm) to 1 3/4 in. (45mm) door thickness.
- Backset adjustable 2 3/8 in. or 2 3/4 in.
- Deadbolt faceplate - standard 2 1/4 in. X 1 in. packed with 1/8 in. plastic filler to convert 1 in. face plate to 1 1/8 in. wide door preparations.
- Bore diameter - 1 in. for latch, 1 1/2 in. or 2 1/8 in. for lock housing.
- Strike - 1 1/8 in. X 2 3/4 in. square corner.
- Keyways - 6 pin solid brass "C" keyway standard.
- LSD01 US26D
Save on your electricity bills by preventing cold air draft from passing beneath the floor by adding thresholds.
Specifications:
- Height:1/ 2 in. (12.7mm)
- Width: 6 in. (152.4mm)
- CCR2726
Seals the gaps around the top & two sides of a door. It contains (1) Jamb Header piece and (2) Hinge & Strike Jamb pieces of weatherstrip.
Specifications:
- Width: 1/4 in. (6.4mm)
- Profile Height: 7/8 in. (22.2mm)
- Total Height: 1 1/8 in. (28.6mm)
- PG-603
Door Shoe is applied to the underside of the door creating a barrier against dust, drafts, light, smoke, and fire without compromising the aesthetics of the door.
Specifications:
- Width -1 1/4 in. (31.8mm)
- Profile Height -1 5/16 in. (33.3mm)
- Total Height with Insert - Approx. 1 7/8 in. (47.6mm)
- DSR-408
A Man Door Accessories 36 in. Double Bore is a container part or accessory for sale that adds function, security, or comfort to your shipping container build. Compatible with 36 in. container applications (confirm fitment before ordering).
Order the exact spec you need for field repairs, fabrication, or safety compliance.
Buy Man Door Accessories 36 in. Double Bore online now — in stock for delivery in 3-7 days across the US.
ANSI Standards Meets or exceeds of BHMA/ANSI A 156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles.
Specifications:
- Door Range 1-3/8 in. to 1-3/4 in. thickness doors
- Backset 2-3/4 in. Standard, 2-3/8 in., 3-3/4 in.
- Front 2-1/4 in. x 1-1/8 in., adjustable for flat or beveled doors 1/8 in. in 2 in.
- Strike ASA strike standard. "T" and full lip strike available on request
- Latchbolt 1/2 in. Throw solid brass, reversible for RH or LH applications. UL listed.
- Latch and Stick Screws 8-32 X 1 in. FPH dual purpose
- ANSI Standards Meets or exceeds of BHMA/ANSI A 156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles
- Exposed Trim Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish
- Keying 6-pin "C" keyway cylinder, 2 keys per lock
- SL00 US26D
Bore diameter - 1 in. for latch, 1 1/2 in. or 2 1/8 in. for lock housing.
Specifications:
- Made from wrought Brass or Stainless Steel.
- Adjustable 1 3/8 in. (35mm) to 1 3/4 in. (45mm) door thickness.
- Backset adjustable 2 3/8 in. or 2 3/4 in.
- Deadbolt faceplate - standard 2 1/4 in. X 1 in. packed with 1/8 in. plastic filler to convert 1 in. face plate to 1 1/8 in. wide door preparations.
- Bore diameter - 1 in. for latch, 1 1/2 in. or 2 1/8 in. for lock housing.
- Strike - 1 1/8 in. X 2 3/4 in. square corner.
- Keyways - 6 pin solid brass "C" keyway standard.
- LSD01 US26D
Save on your electricity bills by preventing cold air draft from passing beneath the floor by adding thresholds.
Specifications:
- Height:1/ 2 in. (12.7mm)
- Width: 6 in. (152.4mm)
- CCR2726
Seals the gaps around the top & two sides of a door. It contains (1) Jamb Header piece and (2) Hinge & Strike Jamb pieces of weatherstrip.
Specifications:
- Width: 1/4 in. (6.4mm)
- Profile Height: 7/8 in. (22.2mm)
- Total Height: 1 1/8 in. (28.6mm)
- PG-603
Door Shoe is applied to the underside of the door creating a barrier against dust, drafts, light, smoke, and fire without compromising the aesthetics of the door.
Specifications:
- Width -1 1/4 in. (31.8mm)
- Profile Height -1 5/16 in. (33.3mm)
- Total Height with Insert - Approx. 1 7/8 in. (47.6mm)
- DSR-408
