Door Lock & Deadbolt Set
In Stock
In Stock
FedEx Next-Day Shipping Available
A Commercial Door Lock & Deadbolt Set is a container part or accessory for sale that adds function, security, or comfort to your shipping container build. Designed for Conexwest container builds and field installations.
Order the exact spec you need for field repairs, fabrication, or safety compliance.
Buy Commercial Door Lock & Deadbolt Set online now — in stock for delivery in 3-7 days across the US.
- Door Range 1-3/8 in. to 1-3/4 in. thickness door
- Backset 2-3/4 in. Standard, 2-3/8 in., 3-3/4 in.
- Front 2-1/4 in. x 1-1/8 in., adjustable for flat or beveled doors 1/8 in. in 2 in.
- Strike ASA strike standard. "T" and full lip strike available on request
- Latchbolt 1/2 in. Throw solid brass, reversible for RH or LH applications. UL listed.
- Latch and Stick Screws 8-32 X 1 in. FPH dual purpose
- ANSI Standards Meets or exceeds of BHMA/ANSI A 156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles
- Exposed Trim Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
- Keying 6-pin "C" keyway cylinder, 2 keys per lock.
- Cylinders & Keyways 6 pin solid brass "C" keyway standard

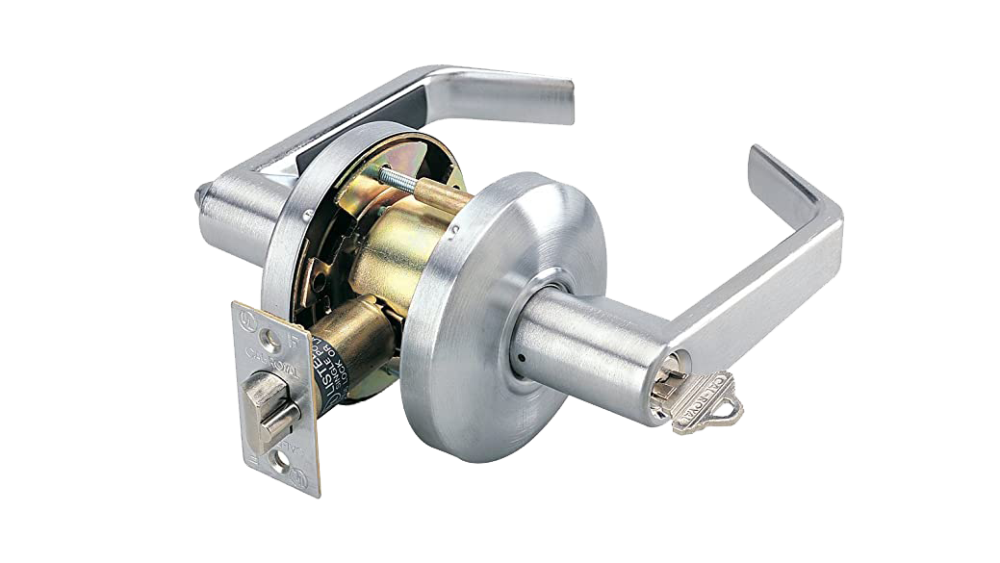

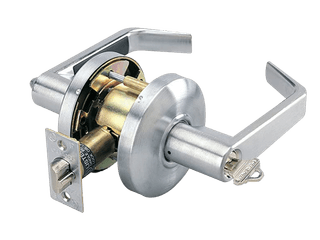

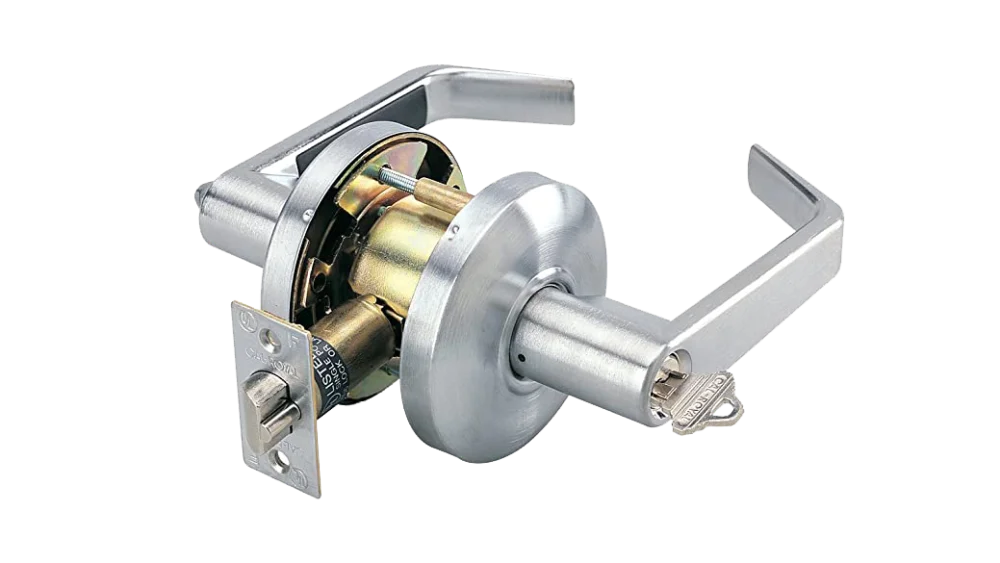

- SL00 US26D
- Wrought brass or stainless steel material
- Adjustable 1 3/8 in. (35mm) to 1 3/4 in. (45mm) door thickness
- Backset adjustable 2 3/8 in. or 2 3/4 in.
- Deadbolt faceplate - standard 2 1/4 in. X 1 in. packed with 1/8 in. plastic filler to convert 1 in. face plate to 1 1/8 in. wide door preparations
- Bore diameter - 1 in. for latch, 1 1/2 in. or 2 1/8 in. for lock housing
- Strike - 1 1/8 in. X 2 3/4 in. square corner
- Keyways - 6 pin solid brass "C" keyway standard

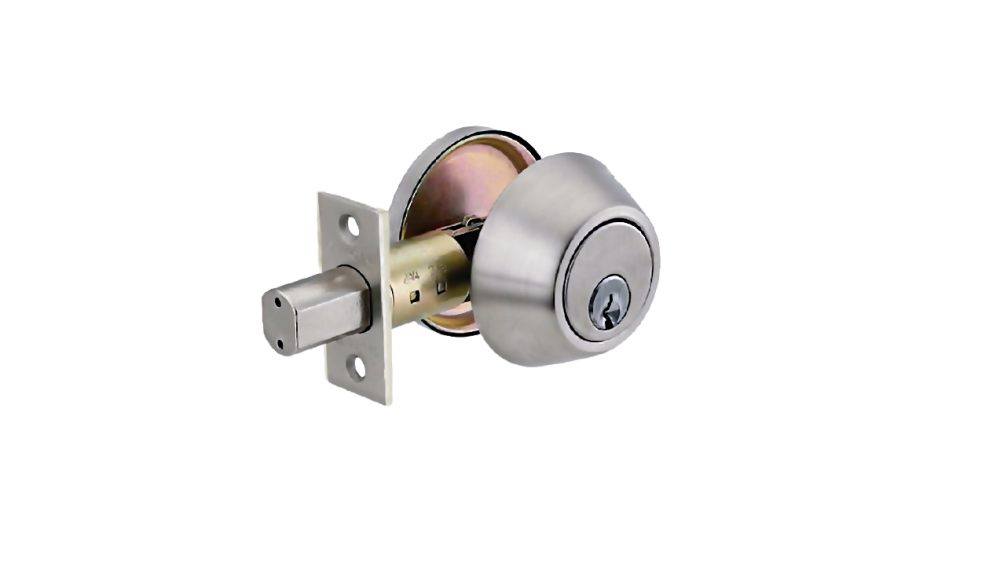

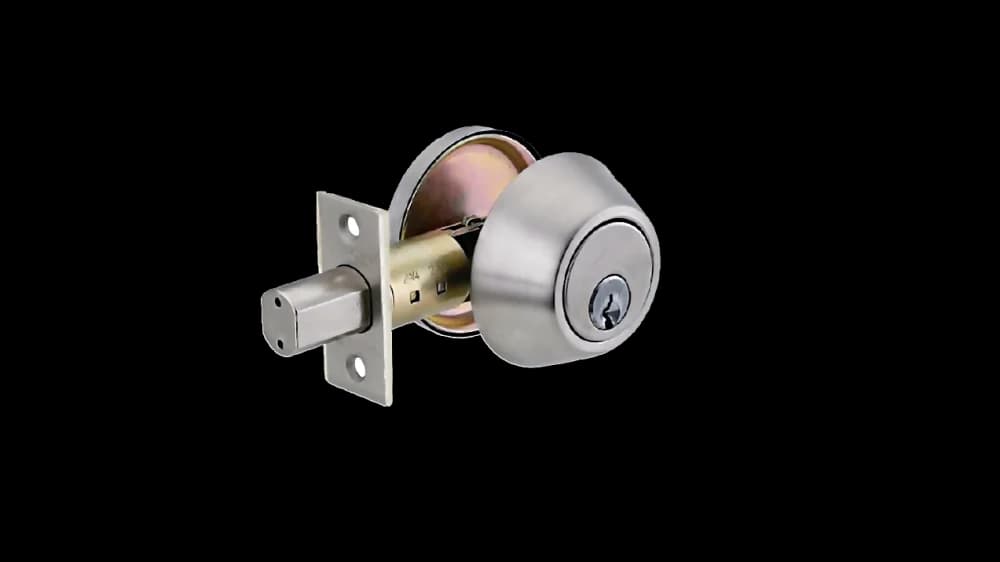

- LSD01 US26D
A Commercial Door Lock & Deadbolt Set is a container part or accessory for sale that adds function, security, or comfort to your shipping container build. Designed for Conexwest container builds and field installations.
Order the exact spec you need for field repairs, fabrication, or safety compliance.
Buy Commercial Door Lock & Deadbolt Set online now — in stock for delivery in 3-7 days across the US.
- Door Range 1-3/8 in. to 1-3/4 in. thickness door
- Backset 2-3/4 in. Standard, 2-3/8 in., 3-3/4 in.
- Front 2-1/4 in. x 1-1/8 in., adjustable for flat or beveled doors 1/8 in. in 2 in.
- Strike ASA strike standard. "T" and full lip strike available on request
- Latchbolt 1/2 in. Throw solid brass, reversible for RH or LH applications. UL listed.
- Latch and Stick Screws 8-32 X 1 in. FPH dual purpose
- ANSI Standards Meets or exceeds of BHMA/ANSI A 156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles
- Exposed Trim Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
- Keying 6-pin "C" keyway cylinder, 2 keys per lock.
- Cylinders & Keyways 6 pin solid brass "C" keyway standard
- SL00 US26D
- Wrought brass or stainless steel material
- Adjustable 1 3/8 in. (35mm) to 1 3/4 in. (45mm) door thickness
- Backset adjustable 2 3/8 in. or 2 3/4 in.
- Deadbolt faceplate - standard 2 1/4 in. X 1 in. packed with 1/8 in. plastic filler to convert 1 in. face plate to 1 1/8 in. wide door preparations
- Bore diameter - 1 in. for latch, 1 1/2 in. or 2 1/8 in. for lock housing
- Strike - 1 1/8 in. X 2 3/4 in. square corner
- Keyways - 6 pin solid brass "C" keyway standard
- LSD01 US26D
