What Is An ISO Container: Standards & Specifications

ISO Container Standards and Specs

Key Takeaways

• ISO containers are standardized shipping containers used worldwide for efficient and secure transport.
• They come in various types such as dry storage, refrigerated, and tank containers.
• Standard dimensions for ISO containers are 20 feet and 40 feet in length, with a width of 8 feet and a height of 8 feet 6 inches.
• Conexwest provides a range of ISO containers for sale and rent with customization options and excellent customer service.

What Is An ISO Container?

ISO containers, also known as intermodal containers, are standardized shipping containers that adhere to specifications set by the International Organization for Standardization (ISO).

Key Characteristics of ISO Containers

1. Standardization: ISO containers are manufactured according to strict specifications that define their dimensions, weight capacities, and construction materials. It allows for easy handling, stacking, and transport across different transportation modes.
2. Common Sizes:
   1. 20-foot Container: Typically has external dimensions of approximately 19 ft 10.5 in (length) x 8 ft (width) x 8 ft 6 in (height).
   2. 40-foot Container: Commonly measures about 39 ft 5.5 in (length) x 8 ft (width) x 8 ft 6 in (height).
   3. High Cube Containers: These are taller versions of standard containers, with a height of 9 ft 6 in to provide extra volume for cargo.

3. Durability: Constructed primarily from corrugated steel, ISO containers are designed to withstand harsh environmental conditions such as heavy rain and snow and maintain structural integrity during transport.

Get a quote

ISO Standards and Specifications

The following ISO standards govern the design, construction, and use of ISO containers:

1. ISO 668: Classification, Dimensions, and Ratings

This standard specifies the classification and dimensions of containers used for intermodal transport. It defines nominal lengths (20 ft and 40 ft), widths (8 ft), and heights (8 ft 6 in for standard containers and 9 ft 6 in for high cube containers). It also sets maximum gross weight limits - 24 tons for a 20-foot container and 30 tons for a 40-foot container.

2. ISO 1496: Specification and Testing

This standard consists of multiple parts that address various aspects of container construction:

• Part 1: General cargo containers.
• Part 2: Thermal containers.
• Part 3: Tank containers.

It covers material specifications, structural requirements, stacking capabilities, leak-proofness, and performance under different environmental conditions.

3. ISO 6346: Coding, Identification, and Marking

This standard establishes a coding system known as the BIC code to identify shipping containers. It mandates marking requirements that include the owner code, serial number, maximum gross weight, and tare weight. This information is essential for safe handling and tracking.

4. ISO 1161: Corner Fittings

Corner fittings are critical for lifting and stacking containers safely. This standard specifies the dimensions and strength requirements for these fittings for compatibility across various handling equipment.

5. ISO 3874: Handling and Securing

This standard focuses on safe handling practices for lifting and securing containers during transport. It outlines methods to prevent damage during loading, unloading, and stacking operations.

6. International Convention for Safe Containers (CSC)

Established by the International Maritime Organization (IMO), this convention sets minimum safety standards for container construction and testing. It requires regular inspections every 30 months for compliance with safety regulations.

Types of ISO Containers

1. Dry Containers: The most common type -  fully enclosed and suitable for general cargo.

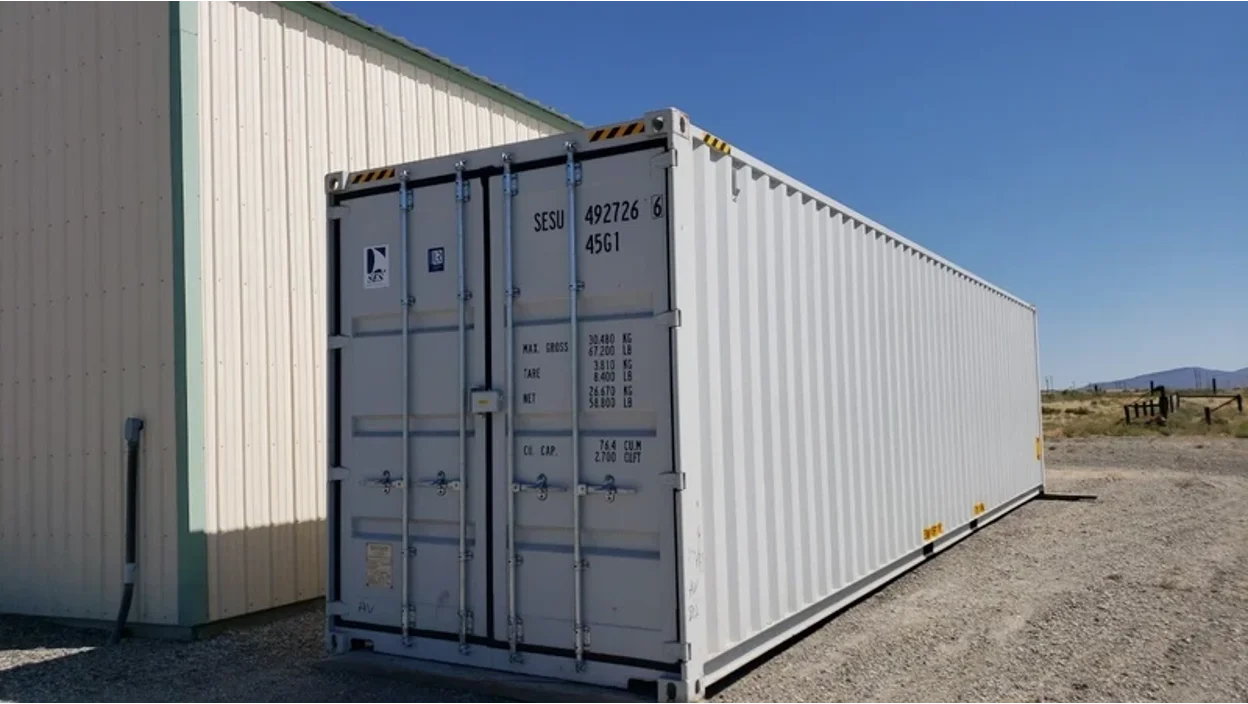

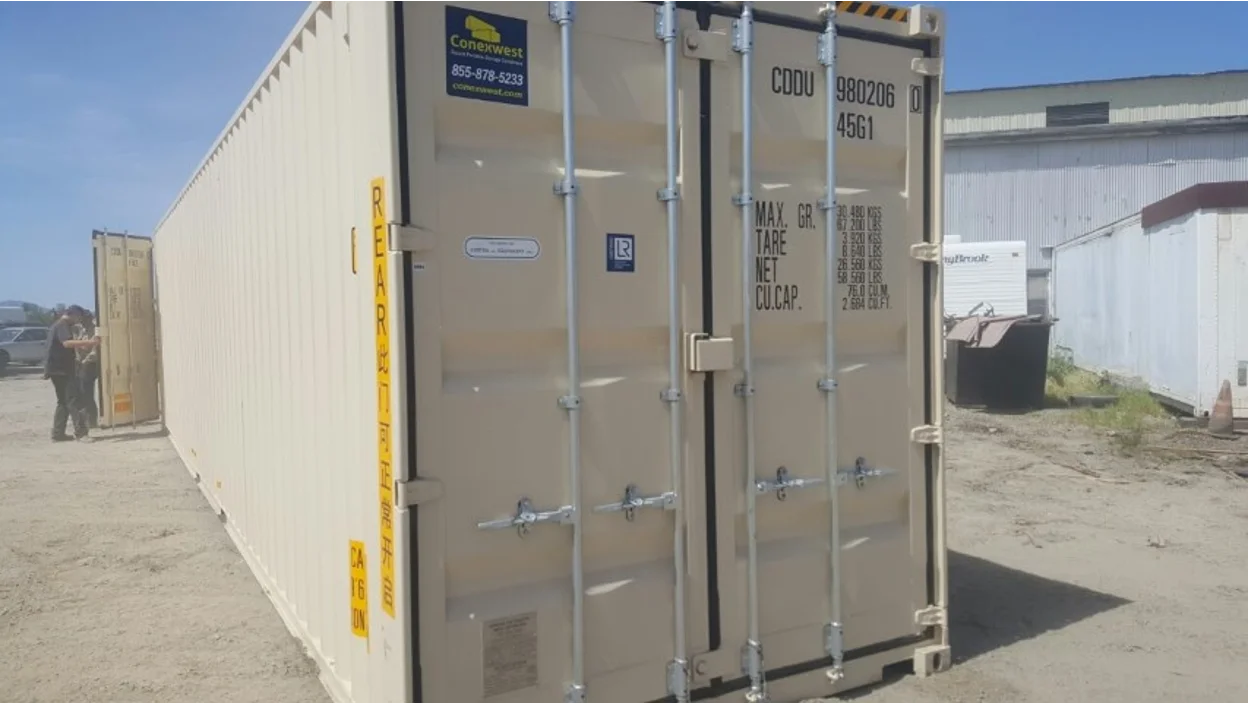

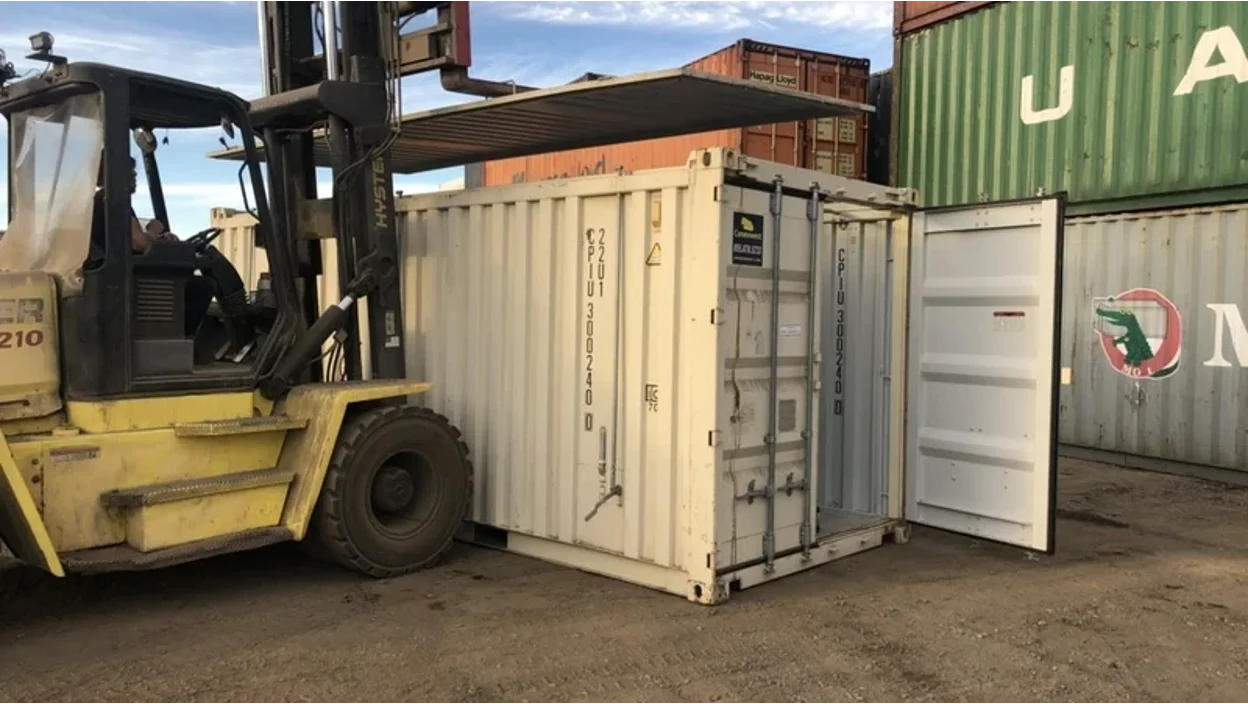

20ft and 40ft containers are the most commonly used dry containers

a. Sizes: Typically available in 20ft, 40ft, 45ft.

b. ISO Code: XXGX (where "G" stands for "general purpose").

c. Uses: Transporting goods that do not require temperature control, such as textiles and machinery.

2. Reefer Containers: Refrigerated containers equipped with temperature control units.

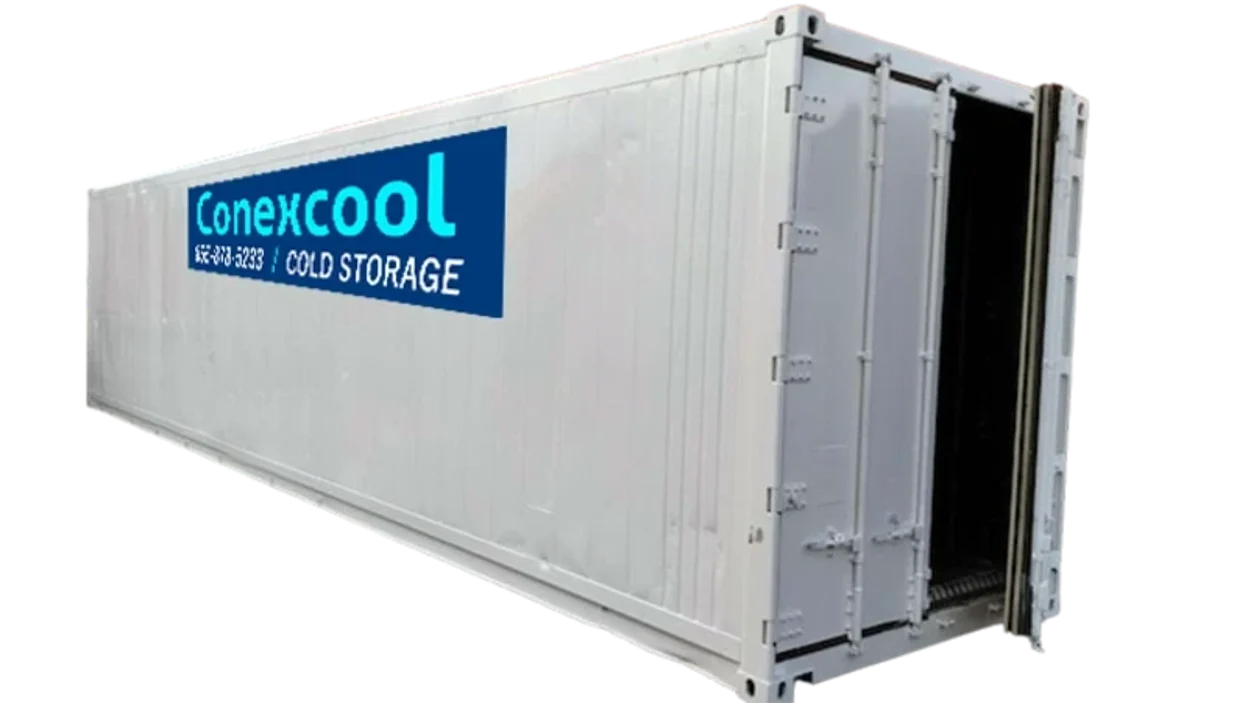

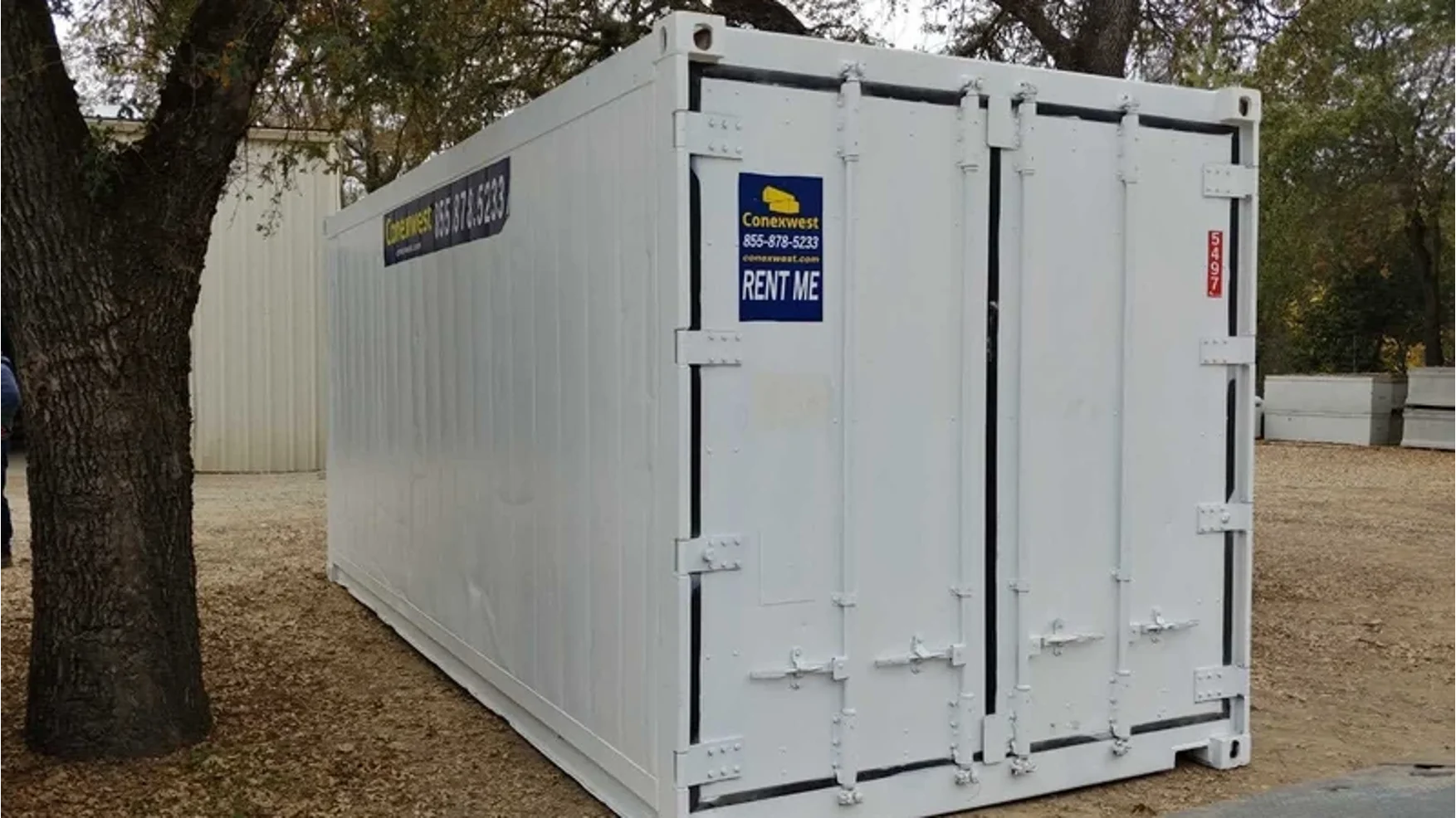

Reefers are used to store food items for a prolonged period

a. Sizes: Common sizes include 20ft and 40ft.

b. ISO Code: XXRX (where "R" stands for "Reefer").

c. Uses: Shipping perishable items like foodstuffs and pharmaceuticals that require specific temperature ranges (-65°C to +40°C).

3. Tank Containers: Cylindrical containers designed for transporting liquids and gases.
 a. Sizes: Generally available in 20ft and 40ft.

b. ISO Code: XXTX (where "T" stands for "Tank").

c. Uses: Suitable for transporting hazardous and non-hazardous liquids, including chemicals and fuels.


4. Flat Rack Containers: Open-sided containers ideal for large or heavy cargo.

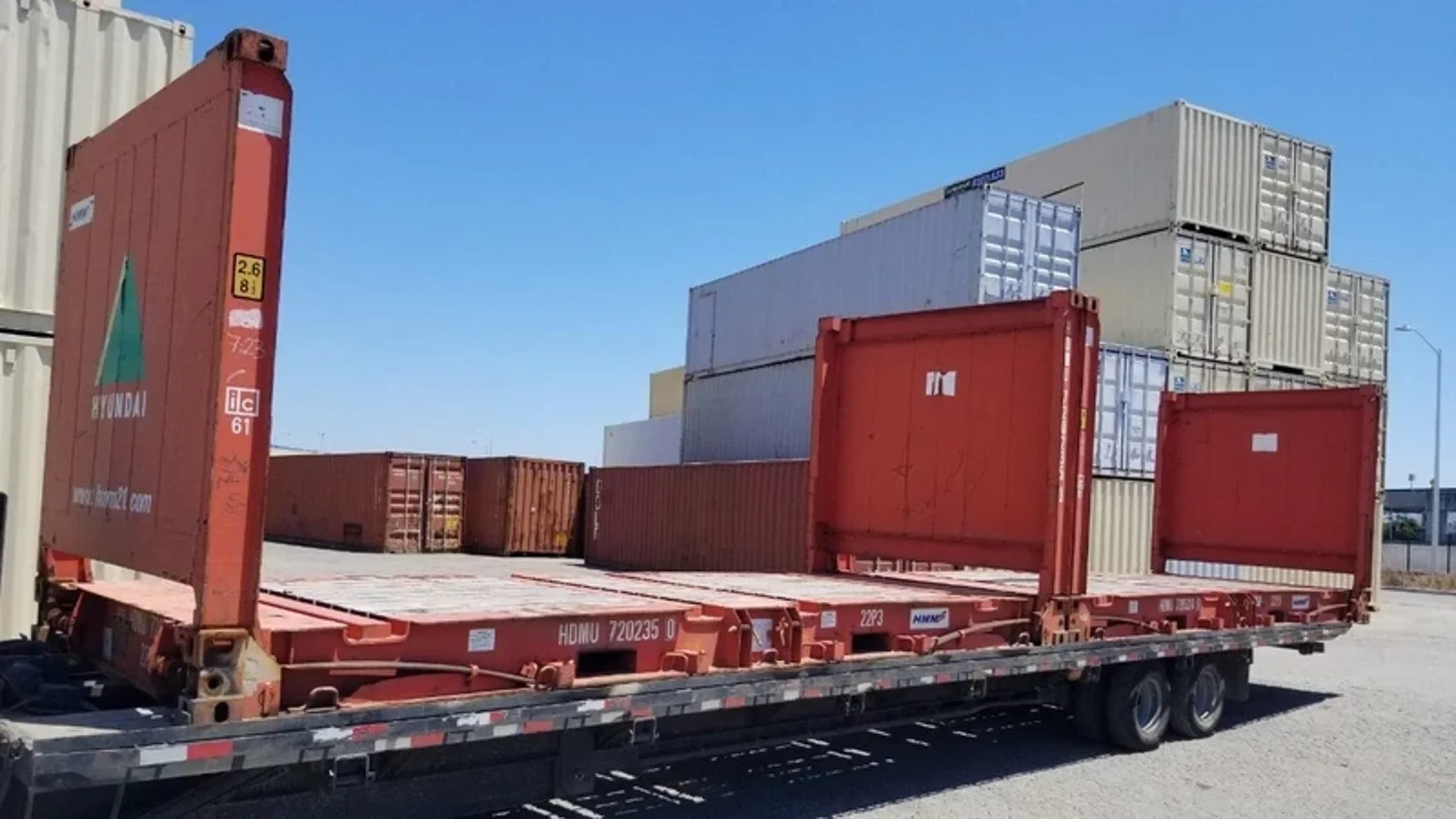

Flat rack containers are used to carry uneven items

a. Sizes: Typically found in 20ft and 40ft.

b. ISO Code: XXPX (where "P" stands for "Platform").

c. Uses: Transporting oversized items like machinery or vehicles that cannot fit in standard containers.

5. Open Top Containers: Containers without a solid roof, allowing loading from above.

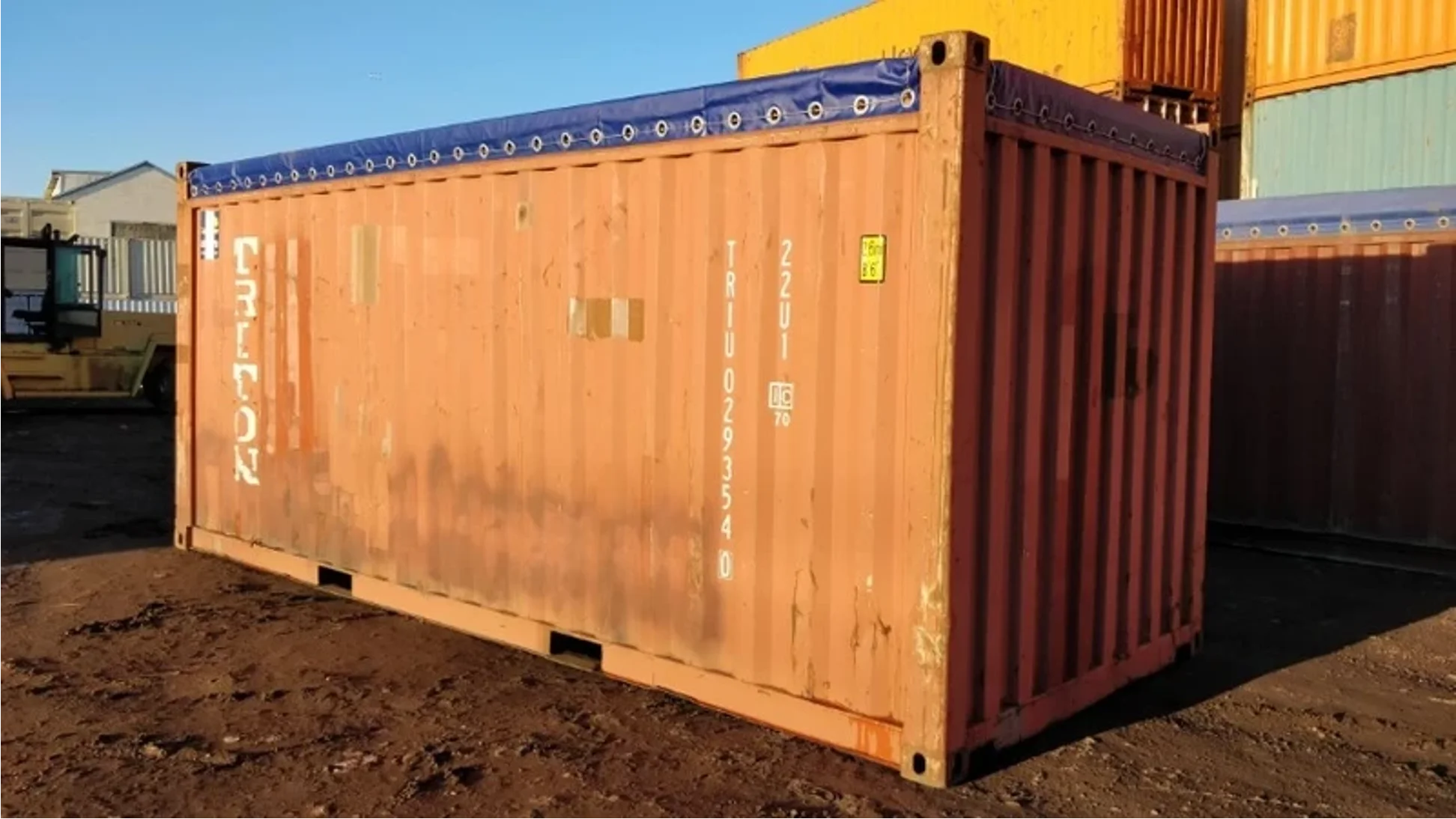

Open top are also called soft top containers

a. Sizes: Available in 20ft and 40ft.

b. ISO Code: XXUX.

c. Uses: Ideal for bulk materials like coal or grain that need to be loaded from the top.

6. Open Side Containers: Containers with doors that open along the long side for easy access.

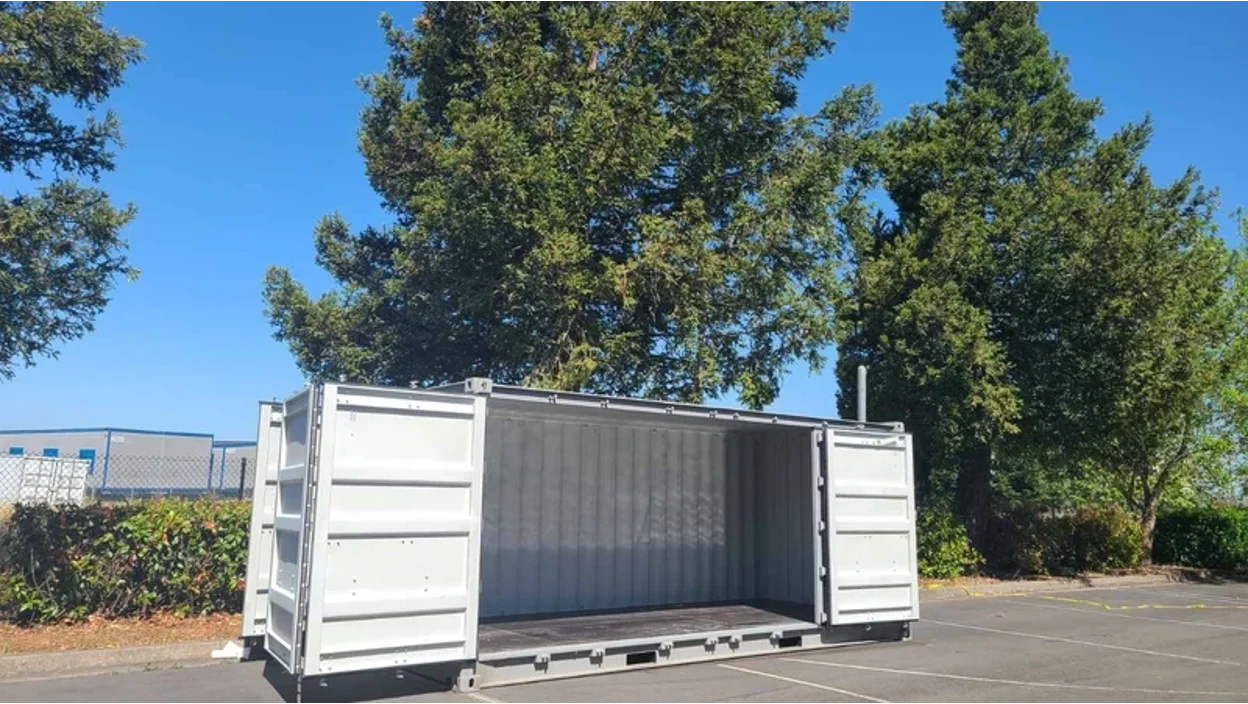

Open side containers make it easier to load and unload goods

a. Sizes: Commonly available in 20ft and 40ft.

b. ISO Code: Similar to open-top containers (XXUX).

c. Uses: Useful for loading items that cannot fit through end doors.

7. Half Height Containers: Shorter containers designed for heavy cargo that doesn’t require full height.
a. Size: Typically available in 20ft.

b. ISO Code: X8UX (with the character "8" indicating half-height).

c. Uses: Often used for bulk materials like coal or gravel.


8. Double Door Containers: Containers with doors at both ends for flexible loading/unloading.

These containers have entry points at both ends

a. Sizes: Available in standard dry container sizes (20ft, 40ft).

b. ISO Code: Same as dry containers (XXGX).

c. Uses: Convenient for transporting vehicles or other cargo needing dual access.

9. Hard Top Containers: Containers with a detachable steel roof providing extra protection.

Their detachable roof makes it easy to carry tall items

a. Sizes: Available in 20ft, 40ft, and 40ft HC.

b. Uses: Suitable for heavy cargo requiring additional security against weather conditions.

10. Insulated Containers: With the ability to maintain temperature without active refrigeration, it is suitable for chilled or frozen goods that need thermal protection but do not require active cooling.

Insulated containers can maintain internal temperature without any electrical connection

11. Silo Tanks: Designed specifically for transporting bulk powders or grains, it is often used in agriculture or food processing industries.

12. Food-grade Tanks: These are tanks designed to meet hygiene standards for transporting food products. They are ideal for beverages, oils, syrups, and other edible liquids.

Choose Conexwest For Your Shipping Container Needs

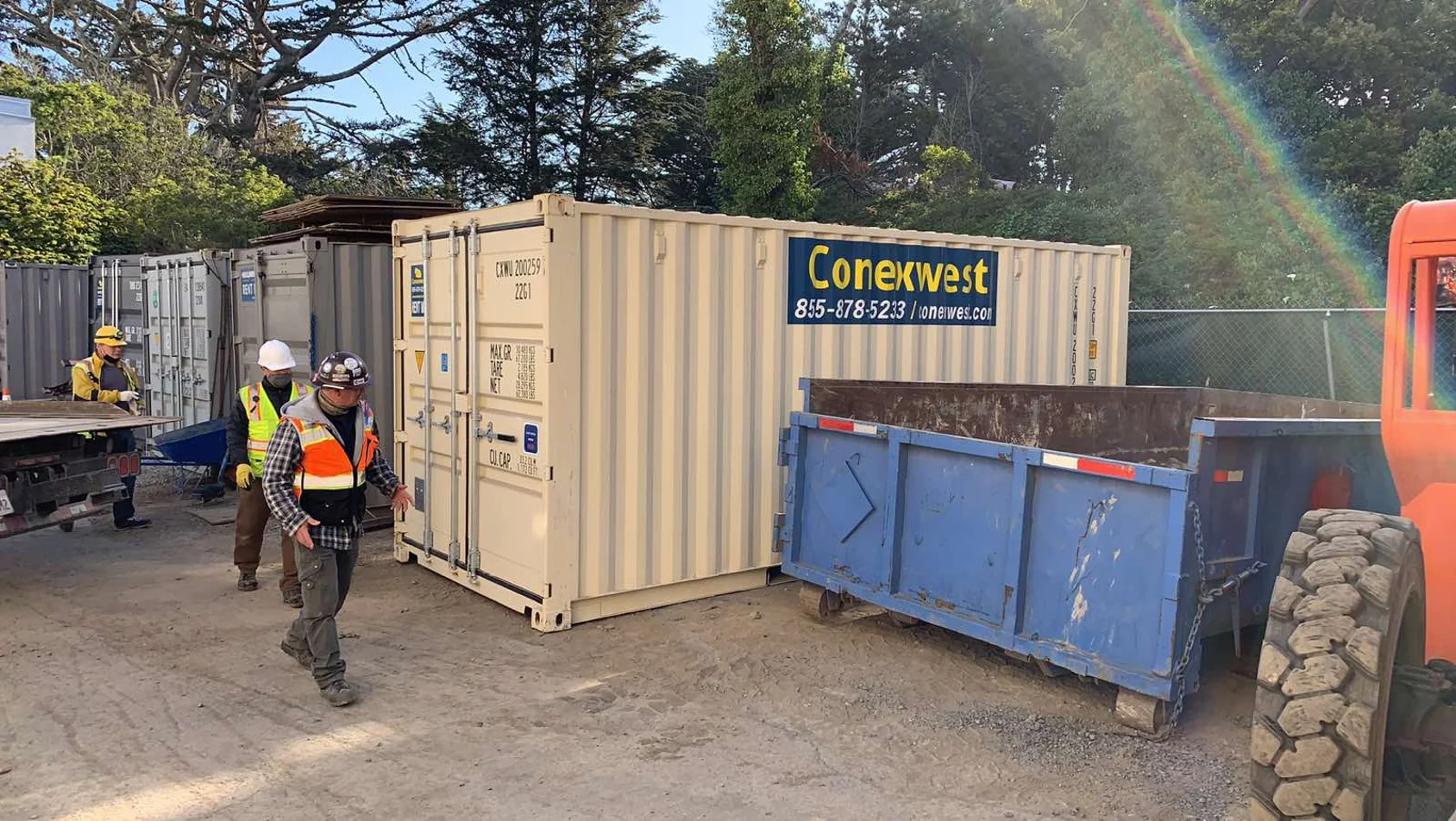

Conexwest is a leading supplier of shipping containers all over the US

From sales to rentals to modifications, we provide a one-stop solution for all your shipping container needs. Here’s what sets us apart:

1. Extensive Inventory: We provide a vast selection of new, used, and refurbished containers in various sizes to cater to diverse needs.
2. Fast Delivery: With industry-leading lead times, your container arrives quickly - often within 3-7 days.
3. Customization Options: Our ability to modify containers means you can get exactly what you need for your project.
4. Quality Assurance: All our containers come with a warranty of up to 10 years.
5. Excellent Customer Service: We prioritize customer satisfaction with prompt responses, instant quotes, and professional support throughout the process.

Get a quote

Frequently Asked Questions (FAQs)

How are ISO containers constructed?

ISO containers are primarily constructed from high-strength steel, which provides durability and resistance to harsh weather conditions. They have a corrugated design that improves structural integrity and allows for stacking during transport. The construction also includes corner fittings that facilitate secure lifting and handling.

How often do ISO containers need to be inspected?

ISO containers must undergo inspections every 30 months by certified inspectors so they meet safety and structural integrity standards. This includes checking for any damage or wear that might compromise their functionality during transport.

What are the benefits of using ISO containers?

1. Standardization: For compatibility across different transport modes.
2. Durability: Built to withstand harsh environments.
3. Cost Efficiency: Reduces shipping costs through efficient loading and unloading.
4. Versatility: Suitable for various cargo types, including hazardous materials.

How do I choose the right ISO container for my needs?

Selecting the appropriate ISO container depends on several factors:

1. The type of cargo you intend to transport (dry goods, perishables, liquids).
2. The size and weight of your cargo.
3. Any specific requirements such as temperature control or ventilation.

Can I rent a shipping container from Conexwest?

Yes, we provide both short-term and long-term rental options. Our rental terms are hassle-free with a minimum duration of just 4 weeks, which can be extended as long as you want.
