Man Door Accessories 48 in. Double Bore
We created this comprehensive accessory kit to complete your double bore 48" x 80" Cor-weld door and to guarantee maximal security, comfort, functionality, and weatherproofing for your large shipping container. This kit includes everything your container door needs - a lever lockset, deadbolt, door shoe, gasket, and threshold. Installation is simple and quick, saving you hassle and valuable time.
Order now to take your double-bore 48" x 80" Cor-weld shipping container door to the next level.
Benefits:
Strengthen the security of your container space with a robust lever lockset and deadbolt.
Weatherproof door shoes, gaskets, and thresholds provide enhanced comfort and protection against external elements.
Simple setup saves time and effort, allowing for quick and hassle-free installation.
The all-in-one kit includes everything you need to complete the assembly of your double-bore door.
Order Information
Order now and enjoy lightning-fast delivery within the United States. We're also available to answer any questions you may have about this product at (855) 878-5233.
Discounted bulk orders are available. No minimum order is required.

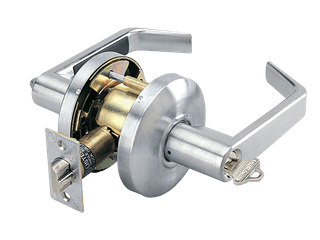

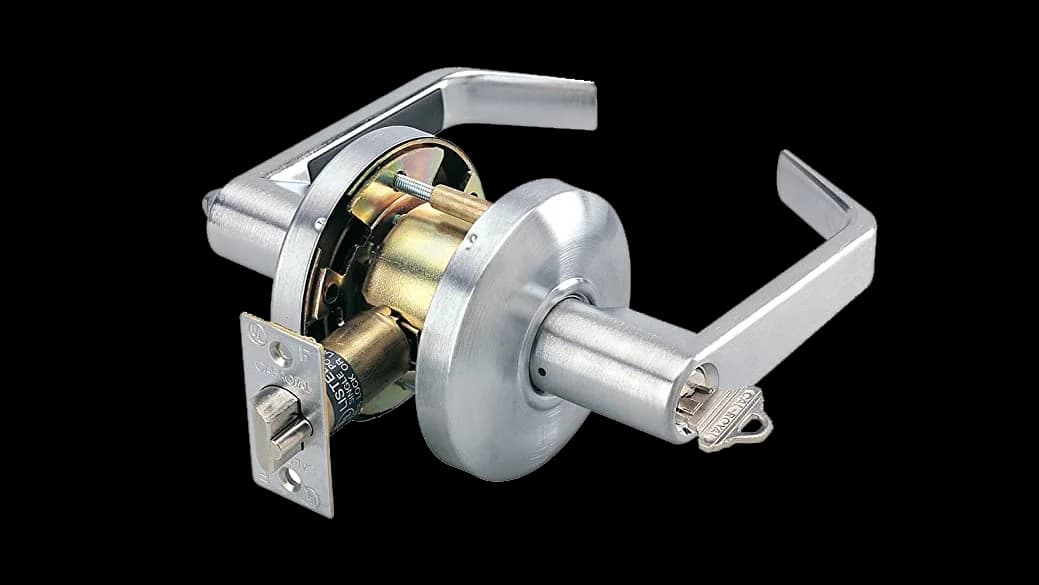

ANSI Standards Meets or exceeds of BHMA/ANSI A 156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles.
Specifications:
- Door Range 1-3/8 in. to 1-3/4 in. thickness doors.
- Backset 2-3/4 in. Standard, 2-3/8 in., 3-3/4 in.
- Front 2-1/4 in. x 1-1/8 in., adjustable for flat or beveled doors 1/8 in. in 2 in.
- Strike ASA strike standard. "T" and full lip strike available on request.
- Latchbolt 1/2 in. Throw solid brass, reversible for RH or LH applications. UL listed.
- Latch and Stick Screws 8-32 X 1 in. FPH dual purpose.
- ANSI Standards Meets or exceeds of BHMA/ANSI A 156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles.
- Exposed Trim Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
- Keying 6-pin "C" keyway cylinder, 2 keys per lock.
- Cylinders & Keyways 6 pin solid brass "C" keyway standard
- SL00 US26D
Bore diameter - 1 in. for latch, 1 1/2 in. or 2 1/8 in. for lock housing.

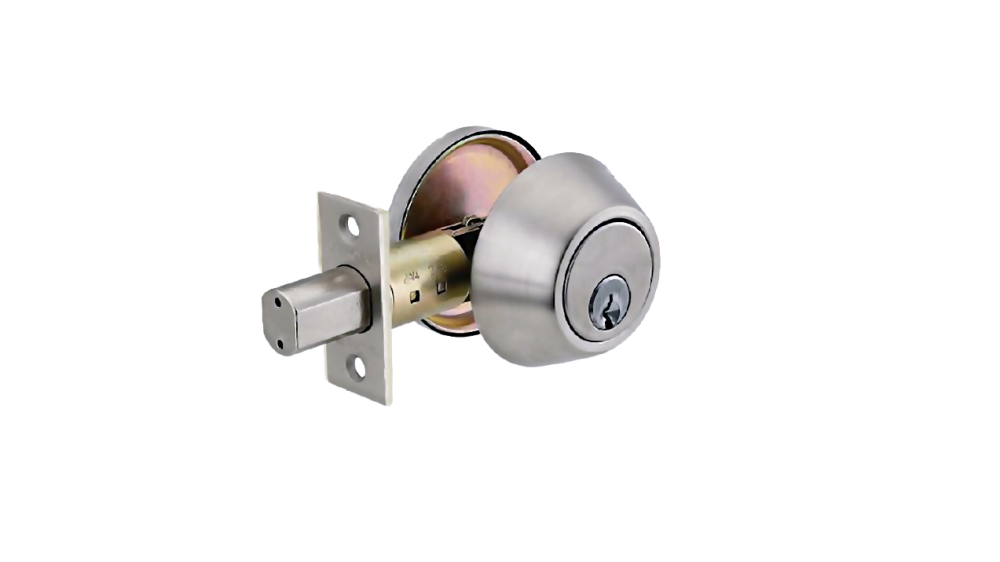

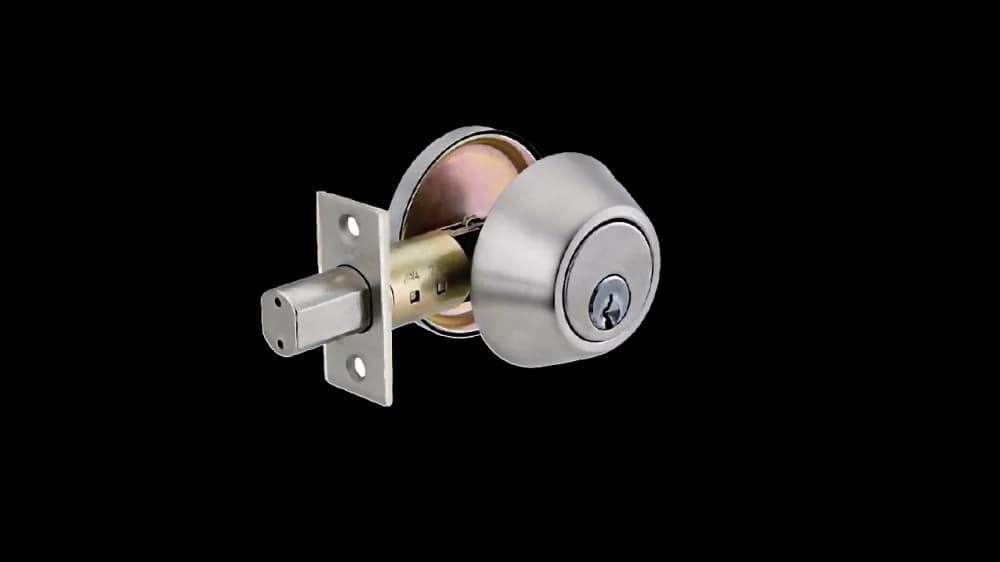

Specifications:
- Wrought Brass or Stainless Steel.
- Adjustable 1 3/8 in. (35mm) to 1 3/4 in. (45mm) door thickness.
- Backset adjustable 2 3/8 in. or 2 3/4 in..
- Deadbolt faceplate - standard 2 1/4 in. X 1 in. packed with 1/8 in. plastic filler to convert 1 in. face plate to 1 1/8 in. wide door preparations.
- Bore diameter - 1 in. for latch, 1 1/2 in. or 2 1/8 in. for lock housing.
- Strike - 1 1/8 in. X 2 3/4 in. square corner.
- Keyways - 6 pin solid brass "C" keyway standard.
- LSD01 US26D
Save on your electricity bills by preventing cold air draft from passing beneath the floor by adding thresholds.
Specifications:
- Height:1/ 2 in. (12.7mm)
- Width: 6 in. (152.4mm)
- CCR2726
Seals the gaps around the top & two sides of a door. It contains (1) Jamb Header piece and (2) Hinge & Strike Jamb pieces of weatherstrip.
Specifications:
- Width: 1/4 in. (6.4mm)
- Profile Height: 7/8 in. (22.2mm)
- Total Height: 1 1/8 in. (28.6mm)
- PG-603
Door Shoe is applied to the underside of the door creating a barrier against dust, drafts, light, smoke, and fire without compromising the aesthetics of the door.
Specifications:
- Width -1 1/4 in. (31.8mm)
- Profile Height -1 5/16 in. (33.3mm)
- Total Height with Insert - Approx. 1 7/8 in. (47.6mm)
- DSR-408
